Real-time Events

Real-time events let a dashboard refresh itself over a WebSocket the moment the data behind it changes, with no manual reload and no polling. When new data is ingested into a data collection, subscribed dashboards refetch and re-render automatically: new rows appear, figures recompute, and updated items briefly highlight.

This makes Depictio suitable for live feeds: an instrument streaming acquisitions, a pipeline emitting results batch by batch, or any process that keeps appending to a data collection.

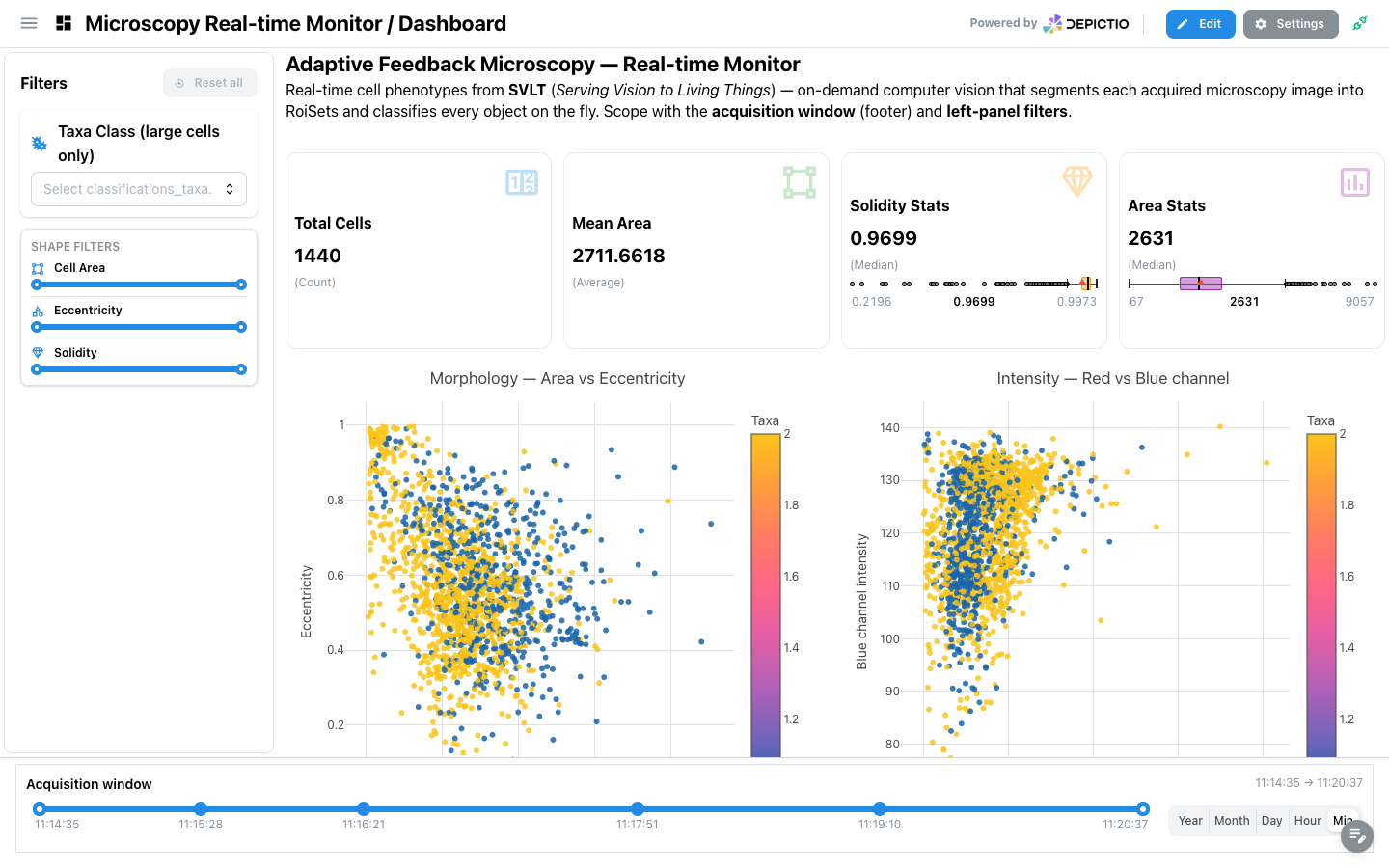

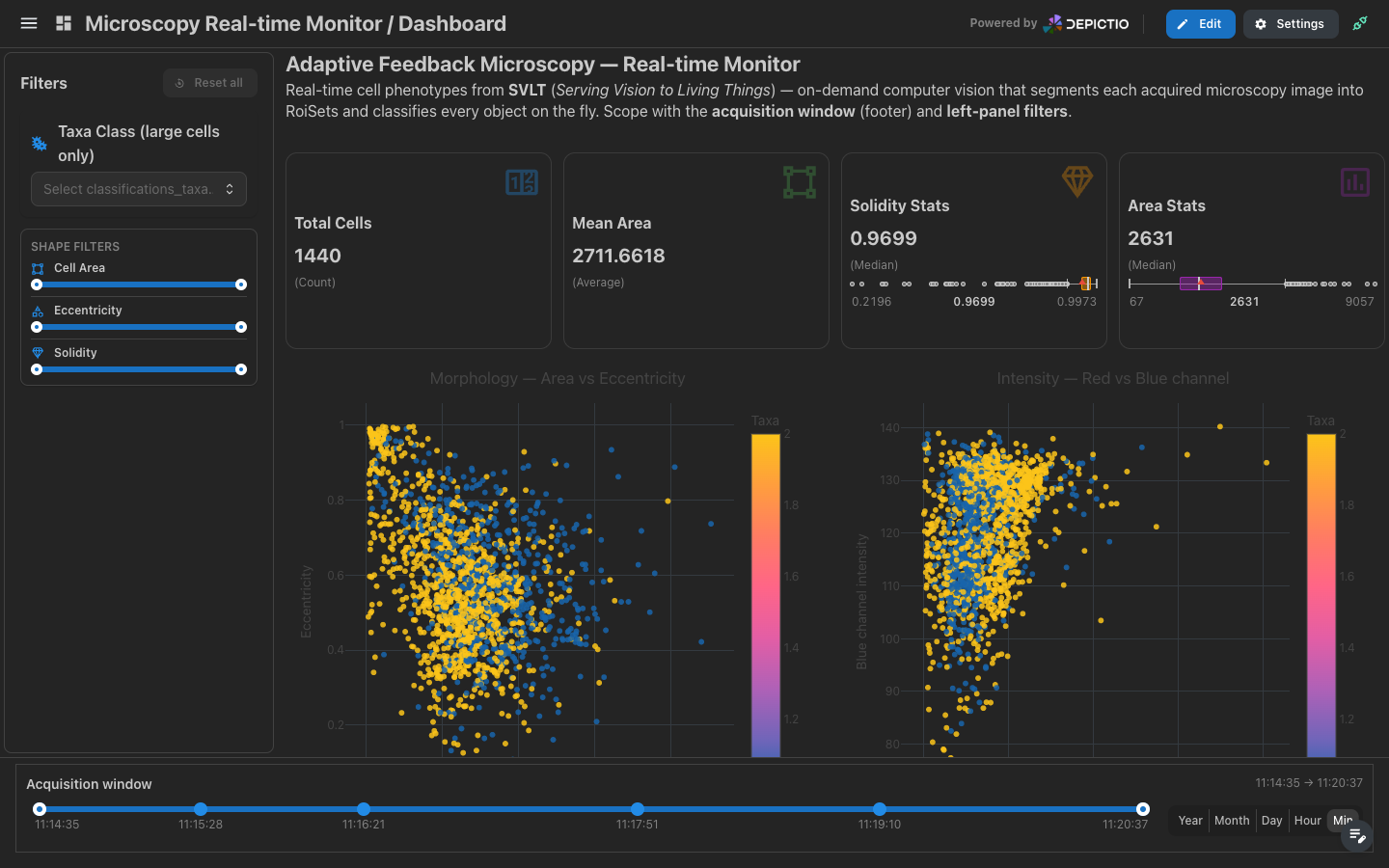

The Adaptive Feedback Microscopy dashboard part-way through a run. The status pill sits at the right of the header; the acquisition window scrubber is pinned in the footer.

Built with the ALMF at EMBL

This dashboard was designed together with the Advanced Light Microscopy Facility at EMBL, on top of SVLT (Serving Vision to Living Things): on-demand computer vision that segments each acquired image into RoiSets and classifies every object while the experiment is still running. SVLT posts each batch of phenotypes to Depictio, which is what the dashboard above is reacting to.

---

Video example

🎬 Real-time events in action: a virtual-microscopy simulator streams acquisitions into a live dashboard

In this recording, a virtual-microscopy acquisition simulator stands in for the instrument. Each acquisition is segmented and pushed to Depictio through /deltatables/upsert, which broadcasts an event on the WebSocket. The dashboard on the left is open the whole time and is never reloaded: it refetches on every broadcast, so its figures and cards keep up with the acquisitions streaming in the terminal on the right.

---

How it works

The refresh is driven entirely by data ingestion. There is no separate "push" API to call:

producer ingests / upserts a data collection
        │  (depictio-cli run …, or a POST to /deltatables/upsert)
        ▼
API re-reads the Delta table, recomputes column specs, bumps its version
        │
        ▼
broadcasts a `data_collection_updated` event on the WebSocket channel
        │  (/depictio/api/v1/events/ws)
        ▼
subscribed dashboards refetch and re-render (updated items highlight)

Any producer that re-ingests or upserts a data collection triggers this. The CLI does it on every depictio-cli run, and an external instrument or pipeline can do the same by POSTing to the /deltatables/upsert endpoint.

---

Enable it

Real-time refresh activates only when all of the following hold.

1. Turn the system on (server)

Set the master switch and make sure a Redis instance is reachable (events are fanned out to viewers via Redis pub/sub):

DEPICTIO_EVENTS_ENABLED=true

The most relevant variables:

Variable	Default	Purpose
DEPICTIO_EVENTS_ENABLED	false	Master switch; nothing happens until this is true
DEPICTIO_EVENTS_REDIS_HOST	redis	Redis host used for pub/sub
DEPICTIO_EVENTS_DEBOUNCE_MS	1000	Coalesce bursts of rapid updates (ms)

See the Environment Variables Reference for the full DEPICTIO_EVENTS_* list (Redis port/password/db, WebSocket heartbeat and timeout, change streams).

2. Opt the project in

Real-time is opt-in per project. Add a top-level realtime block to the project's project.yaml:

realtime:
  enabled: true
  debounce_ms: 500   # optional; overrides the server default for this project

Projects without this block never open a WebSocket, and their dashboards show no live indicator.

3. Open the dashboard

Open any dashboard in an opted-in project. A real-time indicator appears in the header and turns green once the viewer has subscribed. From then on the dashboard updates on its own whenever the underlying data collection is re-ingested.

The indicator sits at the far right of the header, past Edit and Settings.

It reads Connecting… while the socket opens, Live once subscribed, and Offline if the connection drops. An orange dot on the icon marks an update you have not taken yet.

---

Following the stream

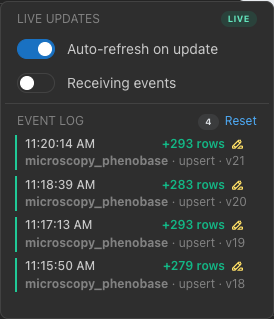

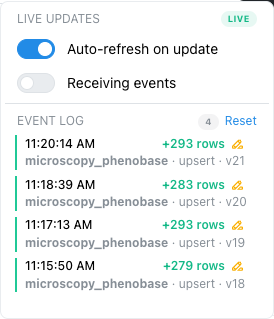

Click the indicator to open the Live updates menu.

Refresh mode and pause sit above the event log. Each row is one broadcast: local arrival time, row delta, data collection tag, operation and aggregation version.

• Auto-refresh on update: on, the dashboard silently refetches on every event. Off, an event only raises a notification and the orange dot, and you refresh when you are ready. Useful when you are reading a figure and don't want it moving under you.
• Receiving events / Paused: pausing stops updates from being applied but keeps the socket open, so nothing is missed from the log.
• Event log: the last 50 events, newest first. It lives in the browser's local storage, so it survives a reload; Reset empties it.

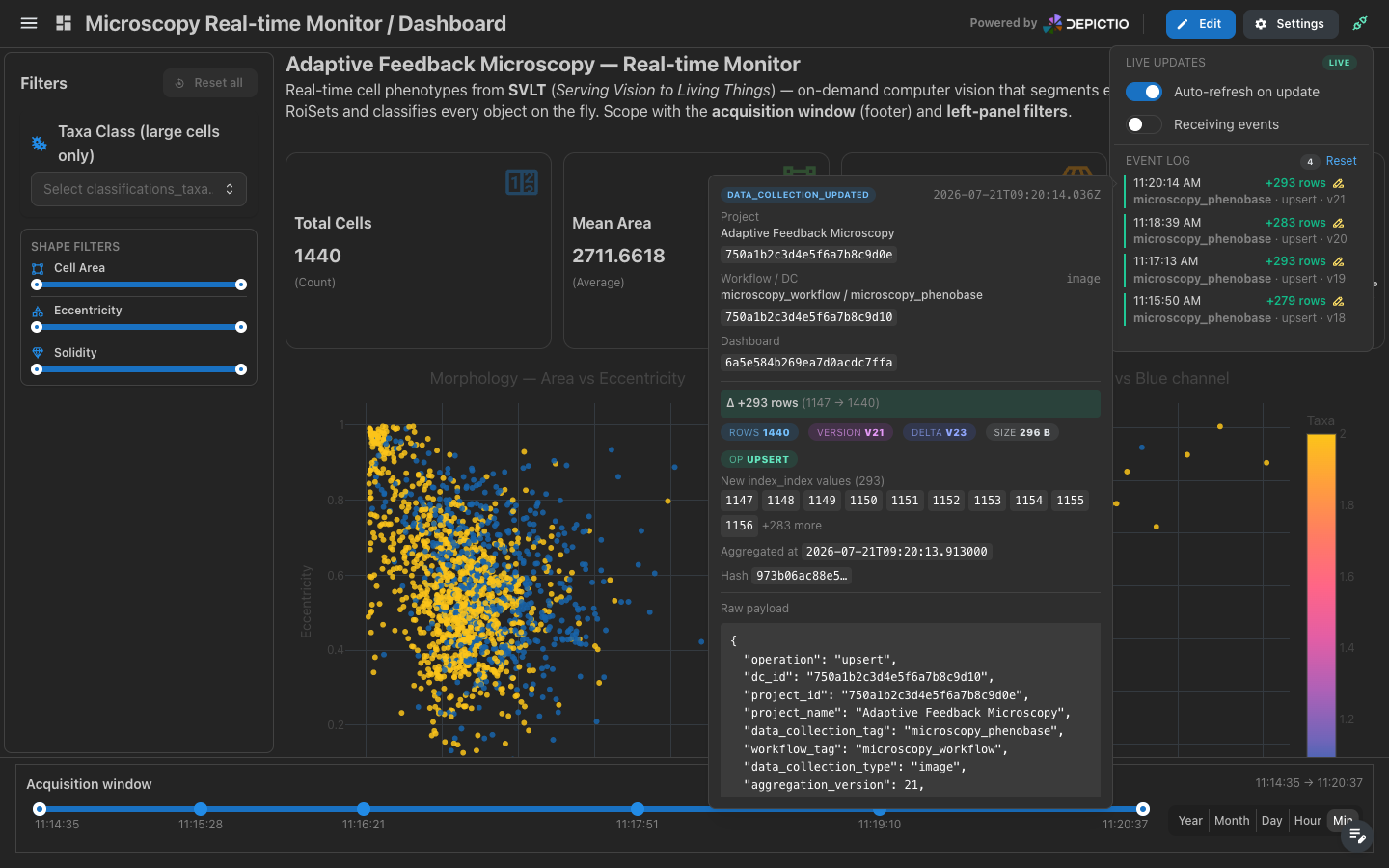

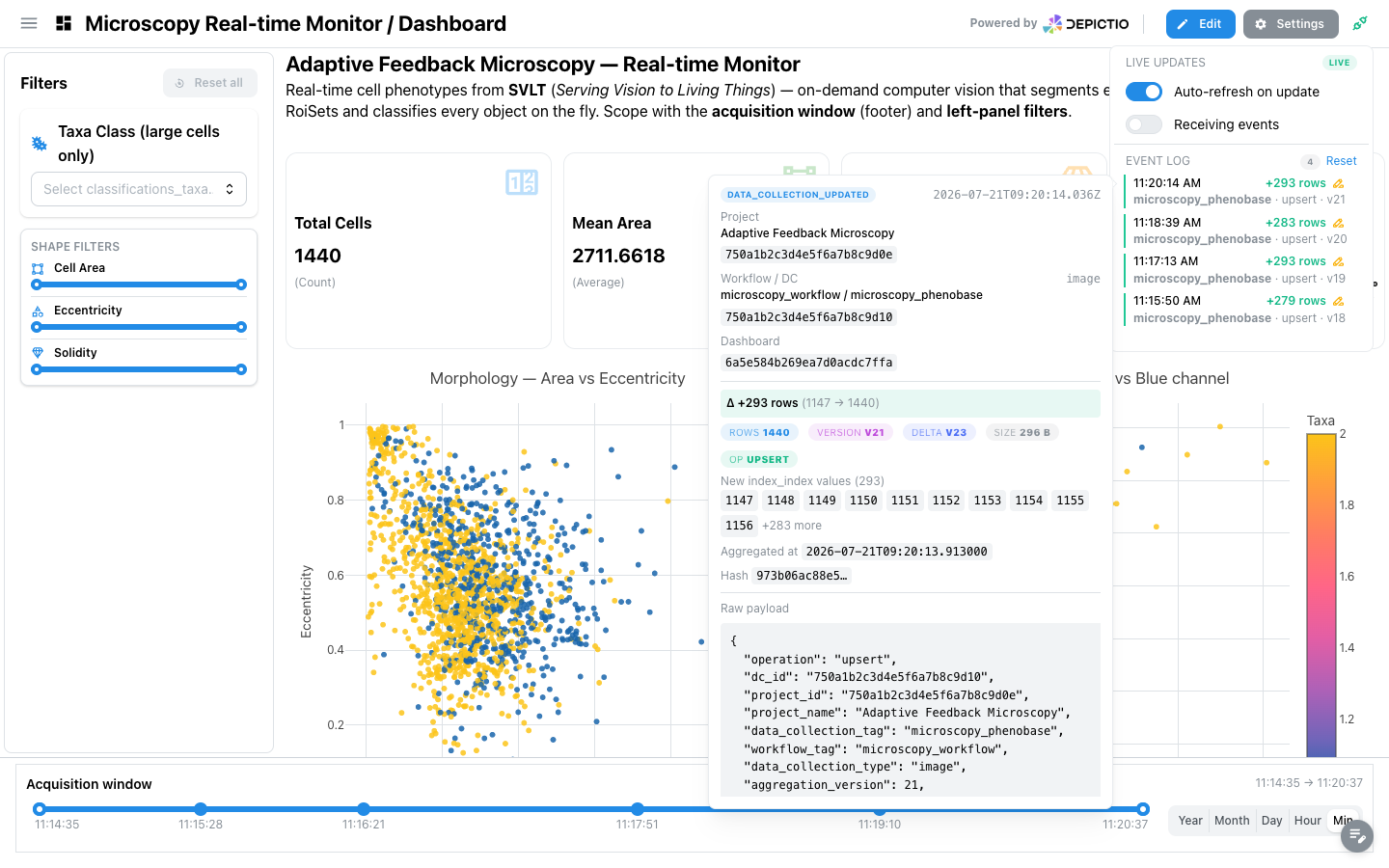

Hover a log row for the whole event.

The hover card carries the project and data collection, the row count before and after, the Delta and aggregation versions, a sample of the ids that arrived, and the raw payload.

Re-highlighting a batch

Rows glow briefly as they land, then fade. The highlight button on a log row brings that batch back: every component bound to the collection re-lights exactly the rows that event added, and keeps them lit until you choose another batch or select Clear highlight.

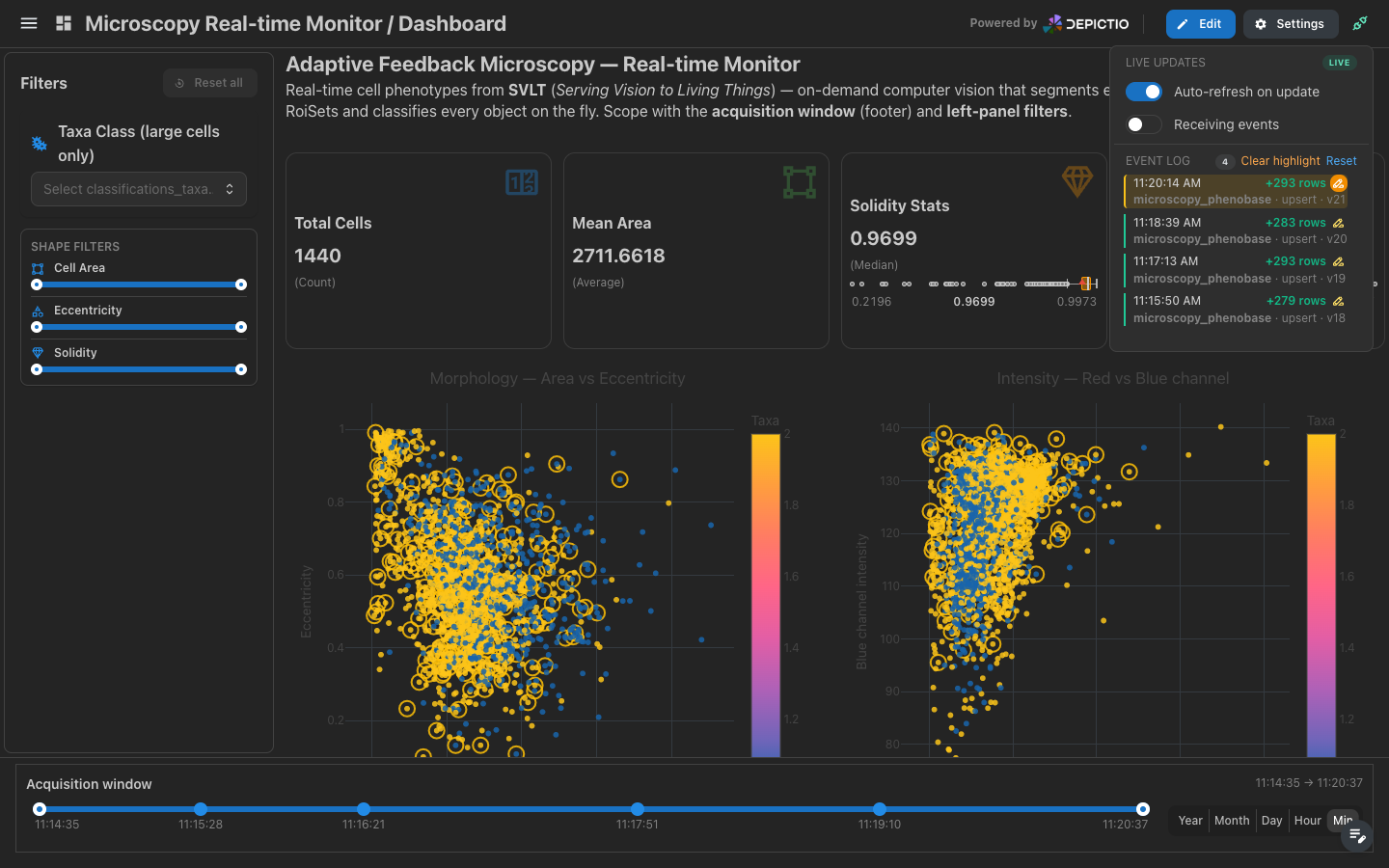

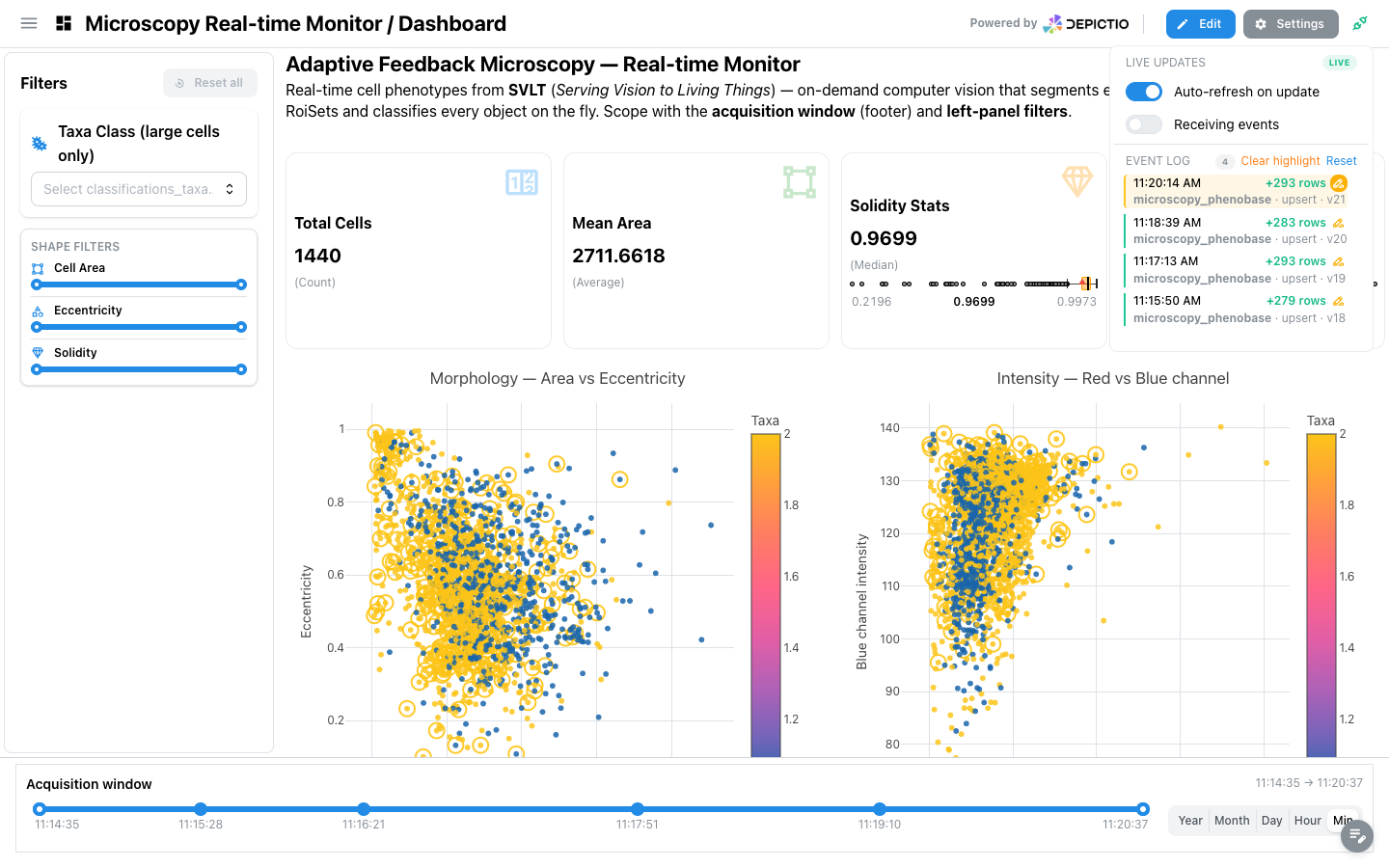

The pinned batch of 293 cells, ringed in yellow across every figure bound to the collection. The source row stays marked in the log, and Clear highlight appears next to Reset.

The button only appears on events that carry a list of added ids. The first commit of a collection has nothing to diff against, so there is no batch to pin.

---

Scoping to an acquisition window

A dashboard that tracks a stream usually places its timeline component in the footer, where it spans the full width below both the filter panel and the components and stays visible as the page scrolls (v1.2.2+).

Every mark on the track is one acquisition timestamp. The buttons on the right change tick spacing and label format only.

Drag either handle to narrow the window and every component re-renders against the selection. The Year … Min buttons do not change the selection itself.

---

Driving updates

Once enabled, any of these will move a live dashboard:

• Re-ingest with the CLI: depictio-cli run --project-config-path <project.yaml> … re-scans and upserts the data collection, which broadcasts the refresh.
• An external producer: an instrument or pipeline that POSTs new data to the /deltatables/upsert API endpoint (with a valid token) triggers the same path. This is the intended integration point for a live experimental feed, and how SVLT feeds the dashboard above.

Try it locally

The bundled adapt_feedb_ms demo project ships with the realtime block already set and a small synthetic driver that needs no extra dependencies, just the CLI and a token:

cd depictio/projects/test/adapt_feedb_ms
./stream_test.sh reset       # seed a couple of rows and ingest
./stream_test.sh stream 3    # append one row every 3s until Ctrl+C

Open the project's dashboard and watch each tick land live: new gallery items, recomputed cards, and a moving timeline, with no manual refresh.

---

Requirements & notes

• Redis is required for pub/sub when events are enabled.
• MongoDB change streams (DEPICTIO_EVENTS_MONGODB_CHANGE_STREAMS_ENABLED, on by default) require MongoDB to run as a replica set.
• Reverse proxy: the WebSocket route /depictio/api/v1/events/ws needs the HTTP upgrade proxied. If you front Depictio with nginx, forward the Upgrade and Connection headers on that path, and allow connect-src 'self' ws: wss: in your Content-Security-Policy.
• Authentication: the WebSocket carries its JWT as a token query parameter (browsers can't set Authorization headers on WS connections) and is permission-checked against the dashboard's project at viewer level before any events are delivered.
