Cross-DC Filtering

Filter data in one collection and automatically update related visualizations—no pre-computed joins needed.

Overview

Links connect Data Collections for interactive filtering at runtime. When you filter a metadata table, linked MultiQC plots and other visualizations update automatically.

┌─────────────────┐         ┌─────────────────┐
│  Metadata Table │  link   │  MultiQC Plots  │
│                 │────────▶│                 │
│  [filter here]  │         │  [auto-updates] │
└─────────────────┘         └─────────────────┘

How It Works

1. Define a link between source DC (e.g., metadata table) and target DC (e.g., MultiQC)
2. Add a filter component to your dashboard
3. When users filter the source DC, linked targets automatically show only matching data

Configuration

Add links to your project YAML:

links:
  - source_dc_id: sample_metadata
    source_column: sample_id
    target_dc_id: multiqc_fastqc
    target_type: multiqc
    link_config:
      resolver: sample_mapping

Link Fields

Field	Required	Description
source_dc_id	Yes	Data collection containing the filter
source_column	Yes	Column to filter on
target_dc_id	Yes	Data collection to receive filtered values
target_type	Yes	Type of target: table or multiqc
link_config	Yes	Resolution configuration (see below)

Link Config Options

link_config:
  resolver: sample_mapping    # Resolution strategy
  target_field: sample_name   # Field to match in target (optional)

Resolvers

Resolvers map source values to target identifiers:

Resolver	Use Case	Example
direct	Same value in both DCs	sample_id → sample_id
sample_mapping	Canonical ID → MultiQC variants	S1 → [S1_R1, S1_R2]
pattern	Template substitution	{sample}.bam

When to Use Each Resolver

• direct: Source and target use identical identifiers
• sample_mapping: MultiQC sample names differ from your canonical IDs (most common for MultiQC)
• pattern: Target uses predictable naming convention

Supported Target Types

Type	Filter Action	Status
table	Filters rows with WHERE IN	Available
multiqc	Filters plot samples	Available
map	Filters map markers	Available
jbrowse2	Shows/hides tracks	Planned
images	Filters image gallery	Planned

Complete Example

name: "RNA-seq QC Analysis"
project_type: "advanced"

# Define links for cross-DC filtering
links:
  # Link metadata to MultiQC plots
  - source_dc_id: sample_metadata
    source_column: sample_id
    target_dc_id: multiqc_general_stats
    target_type: multiqc
    link_config:
      resolver: sample_mapping

  # Link metadata to expression table
  - source_dc_id: sample_metadata
    source_column: sample_id
    target_dc_id: gene_expression
    target_type: table
    link_config:
      resolver: direct
      target_field: sample_id

workflows:
  - name: "rnaseq_pipeline"
    # ... workflow config ...

    data_collections:
      - data_collection_tag: "sample_metadata"
        config:
          type: "table"
          metatype: "metadata"
          # ... scan config ...

      - data_collection_tag: "multiqc_general_stats"
        config:
          type: "MultiQC"

      - data_collection_tag: "gene_expression"
        config:
          type: "table"
          metatype: "aggregate"
          # ... scan config ...

Managing links from the viewer

Links can be defined in YAML (above) or managed interactively from the web viewer. Both paths target the same links: data; UI-managed links are persisted alongside YAML-defined ones.

Action	Where	Notes
Create	DC actions menu → Manage Links → Add link	Source + target DC, source column, resolver, optional sample mapping
Edit	Link row → Edit	Updates the resolver config in place
Delete	Link row → Delete	Cascades automatically when the source or target DC is removed
Inspect (v1.7.0+)	Link row → Inspect mapping	Read-only; shows what each source value actually resolves to

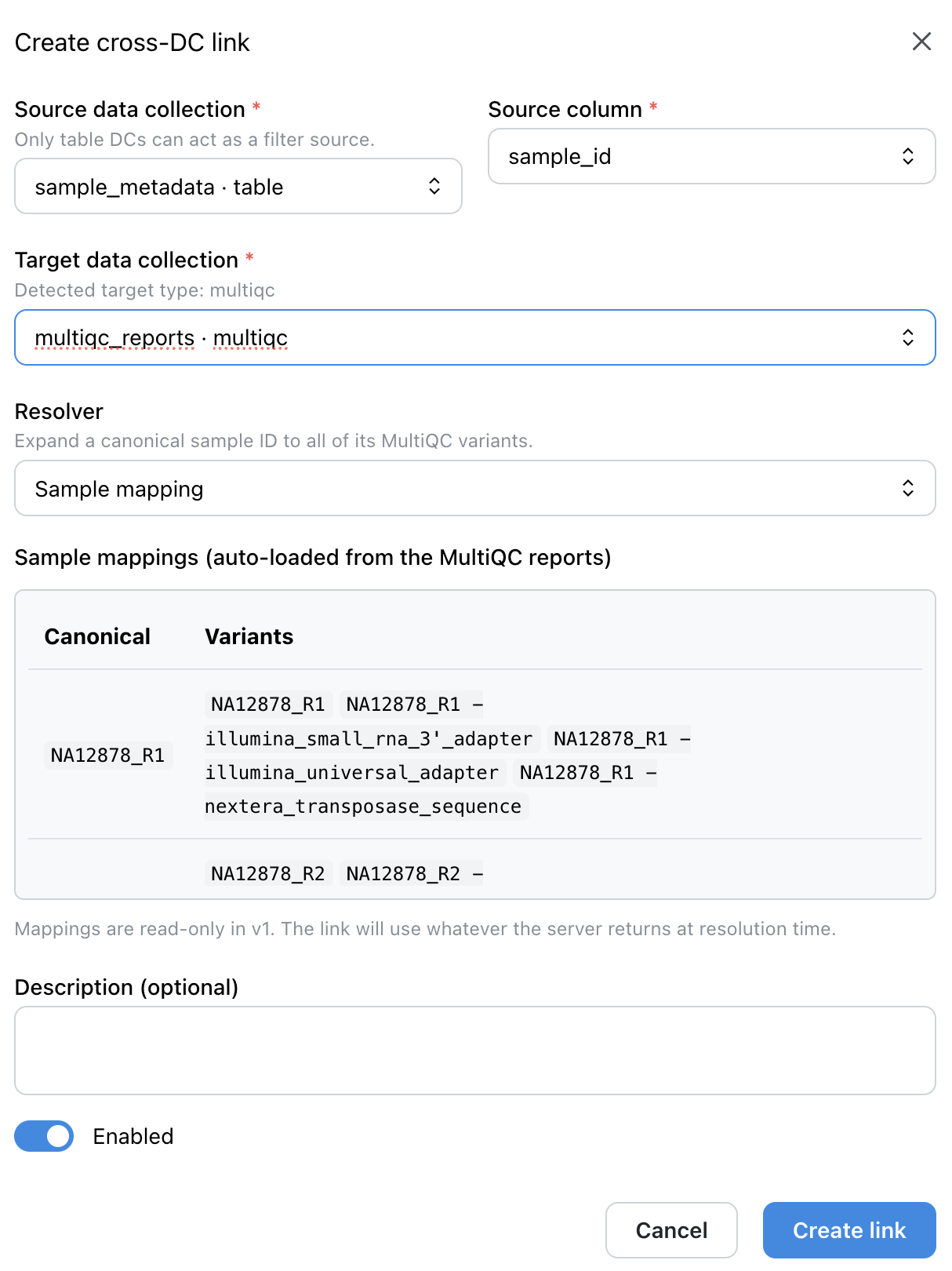

Create cross-DC link modal — source DC sample_metadata, target DC multiqc_reports (detected as multiqc), Sample mapping resolver, with the auto-loaded MultiQC sample mappings previewed.

Inspecting what a link resolves to (v1.7.0+)

A link that silently matches nothing looks exactly like a link that matches everything until you go looking. Every row in the links table opens a mapping inspector from a magnifier, so reading what a link resolves to no longer means entering the edit form and risking a change to it.

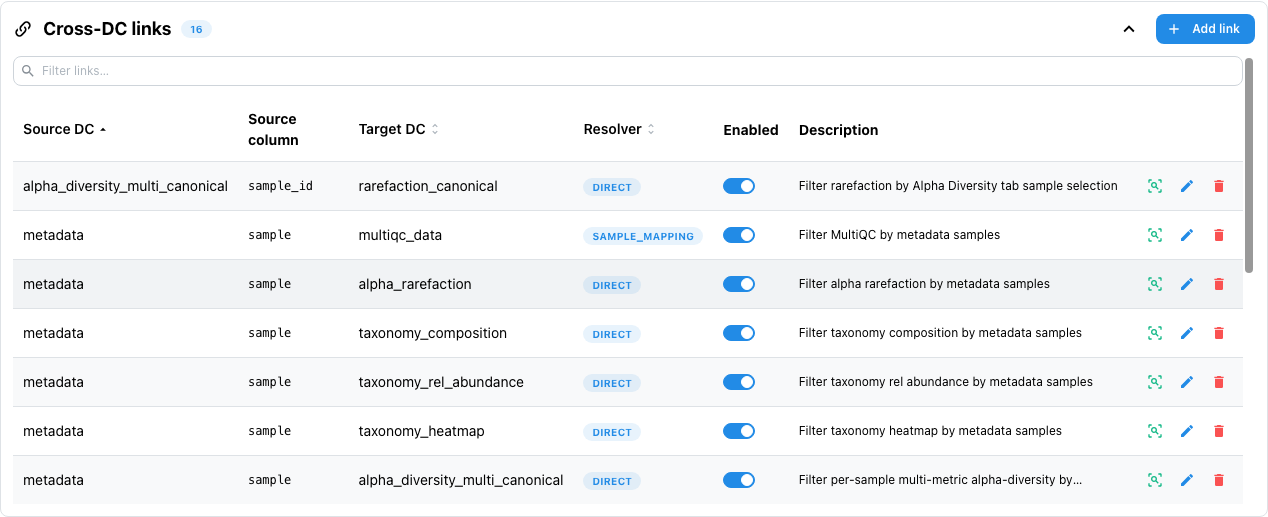

The links table for nf-core/ampliseq: source DC, source column, target DC, resolver badge and enabled switch, with the new inspect action leading each row's controls.

The inspector runs every distinct source value through the link's actual resolver and reports, per value, whether it matched and by which rule, alongside the target-side orphans nothing pointed at.

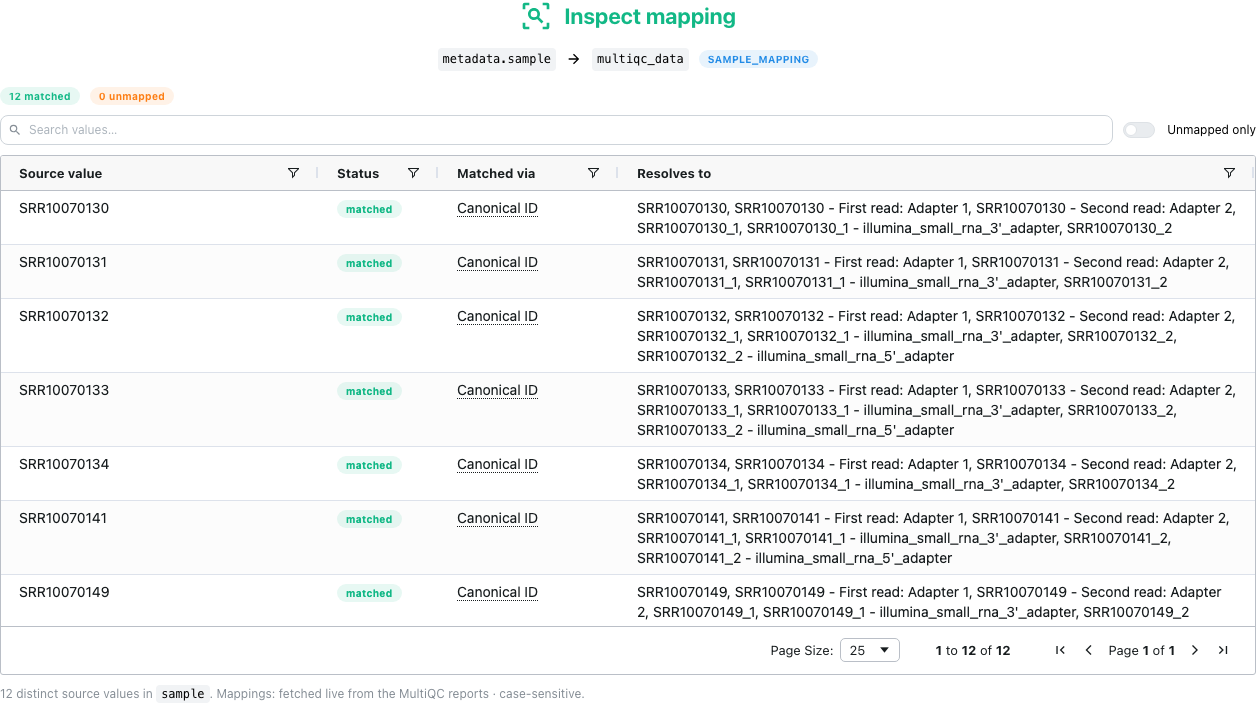

Twelve matched source values on the metadata.sample → multiqc_data link, each resolving through Canonical ID to the sample name and every MultiQC variant recorded for it.

The Matched via column names the lookup rule, not the shape of the result, and every label carries a hover explanation:

Matched via	Meaning
Canonical ID	The source value is a mapping key. A key expands to the canonical ID plus every MultiQC variant recorded for it, which is why one value can resolve to a whole list.
Variant	The source value is itself one of the recorded variants.
Suffix stripped	Matched after removing a read/lane suffix from the key or from the source value.
direct, pattern, regex, wildcard	For links that do not use sample mapping, the resolver's own name.

Because it only reads, the inspect action stays enabled in public and demo mode, where Edit and Delete are disabled.

If a MultiQC link looks stale

A sample_mapping link resolves against the report's live mappings, not a snapshot taken when the link was created, and is stored case-insensitive. Links created before v1.7.0 may still carry a frozen snapshot in their config; re-saving one clears it.

Dashboard Usage

1. Create a dashboard with your linked data collections
2. Add a filter component (dropdown, multi-select) on the source DC
3. Add visualizations for the target DCs
4. Filter the source → targets update automatically

One filter for a whole multi-tab dashboard (v1.6.0+)

Put the filter component in a section marked Show on every tab and it appears in every tab's filter panel, keeping its value as you switch, so the targets on each tab are already filtered when you arrive. See Sections on every tab.

Links vs Joins

Feature	Links	Joins
Execution	Runtime (on filter)	Pre-computed (CLI batch)
Storage	None	Delta table in S3
Target types	Any (table, MultiQC, ...)	Tables only
Use case	Interactive filtering	Combined datasets

Use links for interactive cross-DC filtering. Use joins when you need a permanently combined dataset.
