nf-core/ampliseq

Amplicon sequencing analysis workflow using DADA2 and QIIME2 — 16S, ITS, CO1, 18S and other amplicons across Illumina, PacBio, IonTorrent.
nf-core pipeline · nf-co.re/ampliseq

Reviewed

The ampliseq template covers the main outputs of a standard nf-core/ampliseq run:

• MultiQC quality control — FastQC read quality, Cutadapt trimming statistics
• Taxonomy composition — phylum-level barplots, sunburst, heatmap with annotations
• Alpha diversity — Faith's Phylogenetic Diversity, rarefaction curves (requires metadata)
• Differential abundance — ANCOM-BC volcano plots, log-fold change (requires metadata + --ancombc)
• Sampling locations — geographic scatter map from metadata coordinates (requires metadata)

---

Quick start

Base (no metadata)

depictio run \
  --template nf-core/ampliseq/2.16.0 \
  --data-root /path/to/ampliseq_results \
  --var SAMPLESHEET_FILE=samplesheet.csv

MultiQC + taxonomy dashboards. No diversity or differential abundance.

Extended (with metadata)

depictio run \
  --template nf-core/ampliseq/2.16.0 \
  --data-root /path/to/ampliseq_results \
  --var SAMPLESHEET_FILE=samplesheet.csv \
  --var METADATA_FILE=Metadata.tsv \
  --var GROUP_COL=habitat

Full dashboard: diversity, facetted charts, map, heatmap annotations, ANCOM-BC.

---

Reference

Running without METADATA_FILE prunes the metadata-dependent collections (see the Conditional routes table); the --skip_qiime / --skip_taxonomy / multi-region routes are auto-detected from the run's params.json.

Template variables

Variables you provide when running the template — DATA_ROOT via --data-root, the rest via --var NAME=value:

Variable	Required	Description
DATA_ROOT	✓	Root directory containing ampliseq pipeline output (multiqc/, qiime2/)
SAMPLESHEET_FILE	—	Path to the ampliseq samplesheet. Auto-detected from {DATA_ROOT}/input/ (CSV or TSV) when omitted.
METADATA_FILE	—	Path to sample metadata TSV (--metadata in ampliseq run). Optional. All non-ID columns become annotations.
METADATA_ID_COL	—	Metadata sample-ID column name (links join on it). Auto-detected as the first metadata column; defaults to 'sample'.
GROUP_COL	—	Metadata column for grouping/facetting in dashboards. Auto-detected as first annotation column if not provided.

Auto-detected (set from the run's metadata / params.json; the route flags drive Conditional routes below): GROUP_COL_DISPLAY, ANNOTATION_COLS, IS_MULTIREGION, SKIP_TAXONOMY, SKIP_ALPHA_RAREFACTION, SKIP_ANCOM

Data collections

23 data collections — 11 required 12 optional.

Tag	Type	Source	Recipe / scan target	Status
multiqc_data	MultiQC	scan	multiqc/multiqc_data/multiqc.parquet	required
samplesheet	Table	scan	{SAMPLESHEET_FILE}	required
metadata	Table	scan	{METADATA_FILE}	optional
alpha_rarefaction	Table	transformed	qiime2/alpha_rarefaction.py	required
taxonomy_composition	Table	transformed	qiime2/taxonomy_composition.py	required
taxonomy_rel_abundance	Table	transformed	nf-core/ampliseq/taxonomy_rel_abundance.py	required
sintax_rel_abundance	Table	transformed	nf-core/ampliseq/sintax_rel_abundance.py	optional
taxonomy_heatmap	Table	transformed	qiime2/taxonomy_heatmap.py	required
ancombc_results	Table	transformed	qiime2/ancombc.py	optional
stacked_taxonomy_canonical	Table	transformed	qiime2/stacked_taxonomy_canonical.py	optional
embedding_pcoa	Table	transformed	qiime2/embedding_pcoa.py	required
rarefaction_canonical	Table	transformed	qiime2/rarefaction_canonical.py	optional
alpha_diversity_multi_canonical	Table	transformed	qiime2/alpha_diversity_multi_canonical.py	optional
complex_heatmap_canonical	Table	transformed	nf-core/ampliseq/complex_heatmap_canonical.py	required
sunburst_canonical	Table	transformed	nf-core/ampliseq/sunburst_canonical.py	optional
sankey_canonical	Table	transformed	nf-core/ampliseq/sankey_canonical.py	optional
upset_canonical	Table	transformed	nf-core/ampliseq/upset_canonical.py	required
ma_canonical	Table	transformed	nf-core/ampliseq/ma_canonical.py	required
bray_curtis_canonical	Table	transformed	nf-core/ampliseq/bray_curtis_canonical.py	required
phylogenetic_tree_canonical	phylogeny	scan	{DATA_ROOT}/qiime2/phylogenetic_tree/tree.nwk	optional
phylogenetic_tree_metadata_canonical	Table	transformed	nf-core/ampliseq/tree_metadata_canonical.py	optional
sidle_reconstructed	Table	transformed	nf-core/ampliseq/sidle_reconstructed.py	optional
sidle_reconstruction_qc	Table	transformed	nf-core/ampliseq/sidle_reconstruction_qc.py	optional

Conditional routes

Rows are data collections; columns are the variables you set or params.json flags auto-detected from the run. Each filled cell is the effect of setting that variable; an empty cell means that variable leaves the collection unchanged. (4 collections are unaffected by any variable — present on every run.)

+ included− removed⇄ repointed

Data collection	METADATA_FILE	SKIP_QIIME	IS_MULTIREGION	SKIP_TAXONOMY	SKIP_ALPHA_RAREFACTION	SKIP_ANCOM
metadata	+
alpha_rarefaction	+	−	−		−
taxonomy_composition		−		−
taxonomy_rel_abundance		−	−	−
sintax_rel_abundance		+
taxonomy_heatmap		−	−	−
ancombc_results	+	−	−	−		−
stacked_taxonomy_canonical		−	−	−
embedding_pcoa		−	−	−
rarefaction_canonical		−	−		−
alpha_diversity_multi_canonical		−	−		−
complex_heatmap_canonical		−	−	−
sunburst_canonical		−	−	−
sankey_canonical		−	−	−
upset_canonical	+	−	−	−
ma_canonical	+	−	−	−		−
bray_curtis_canonical		−	−	−
phylogenetic_tree_canonical		−	−
phylogenetic_tree_metadata_canonical		−	−

Cross-DC links

18 links — selecting a value in the source collection filters the target. The join column is shown after the source.

Source · column		Target	Filters
samplesheet · sampleID	→	multiqc_data	Filter MultiQC by samplesheet samples
metadata · {METADATA_ID_COL}	→	multiqc_data	Filter MultiQC by metadata samples
metadata · {METADATA_ID_COL}	→	alpha_rarefaction	Filter alpha rarefaction by metadata samples
metadata · {METADATA_ID_COL}	→	taxonomy_composition	Filter taxonomy composition by metadata samples
metadata · {METADATA_ID_COL}	→	taxonomy_rel_abundance	Filter taxonomy rel abundance by metadata samples
samplesheet · sampleID	→	sintax_rel_abundance	Filter sintax rel abundance by samplesheet samples
metadata · {METADATA_ID_COL}	→	sintax_rel_abundance	Filter sintax rel abundance by metadata samples
samplesheet · sampleID	→	taxonomy_heatmap	Filter taxonomy heatmap by samplesheet samples
metadata · {METADATA_ID_COL}	→	taxonomy_heatmap	Filter taxonomy heatmap by metadata samples
metadata · {METADATA_ID_COL}	→	alpha_diversity_multi_canonical	Filter per-sample multi-metric alpha-diversity by metadata samples
metadata · {METADATA_ID_COL}	→	rarefaction_canonical	Filter multi-metric rarefaction curves by metadata samples
alpha_diversity_multi_canonical · sample_id	→	rarefaction_canonical	Filter rarefaction by Alpha Diversity tab sample selection
metadata · {METADATA_ID_COL}	→	stacked_taxonomy_canonical	Filter stacked-taxonomy bars by metadata samples
metadata · {METADATA_ID_COL}	→	embedding_pcoa	Filter PCoA embedding by metadata samples
metadata · {METADATA_ID_COL}	→	sunburst_canonical	Filter sunburst by metadata samples
metadata · {METADATA_ID_COL}	→	sankey_canonical	Filter sankey flows by metadata samples
metadata · {METADATA_ID_COL}	→	complex_heatmap_canonical	Filter complex heatmap by metadata samples (best-effort on wide matrix)
metadata · {METADATA_ID_COL}	→	bray_curtis_canonical	Filter Bray-Curtis distances by metadata samples (best-effort on wide matrix)

Recipes

Each recipe reshapes raw pipeline output into a tidy table. The name links to its source; Output lists the validated EXPECTED_SCHEMA columns.

Recipe	Transforms	Output
nf-core/ampliseq/bray_curtis_canonical.py	Canonical-schema Bray-Curtis distance DC for ampliseq.	sample
nf-core/ampliseq/complex_heatmap_canonical.py	Canonical-schema ComplexHeatmap DC for ampliseq.	Phylum, Kingdom
nf-core/ampliseq/ma_canonical.py	Canonical-schema MA-plot DC for ampliseq.	feature_id, avg_log_intensity, log2_fold_change
nf-core/ampliseq/sankey_canonical.py	Canonical-schema Sankey DC for ampliseq.	sample_id, Kingdom, Phylum, abundance
nf-core/ampliseq/sidle_reconstructed.py	Melt the SIDLE cross-region reconstructed feature table to long per-sample taxonomy.	feature_id, sample, count, taxonomy, Kingdom, Phylum, Class, Genus
nf-core/ampliseq/sidle_reconstruction_qc.py	Per-reconstructed-feature SIDLE reconstruction confidence (route-specific QC).	feature_id, num_regions, total_kmers_mapped, mean_kmer_per_region, stdv_kmer_per_region, mapped_asvs
nf-core/ampliseq/sintax_rel_abundance.py	Per-sample Phylum-level relative abundance from sintax (--skip_qiime) outputs.	sample, taxonomy, rel_abundance, Kingdom, Phylum
nf-core/ampliseq/sunburst_canonical.py	Canonical-schema sunburst DC for ampliseq.	Kingdom, Phylum, abundance
nf-core/ampliseq/taxonomy_rel_abundance.py	Transform QIIME2 relative abundance table to long-format per-sample taxonomy table.	sample, taxonomy, rel_abundance, Kingdom, Phylum
nf-core/ampliseq/tree_metadata_canonical.py	Tip metadata for the ampliseq phylogenetic tree.	taxon
nf-core/ampliseq/upset_canonical.py	Canonical-schema UpSet DC for ampliseq.	taxon
qiime2/alpha_diversity_multi_canonical.py	Per-sample multi-metric alpha-diversity DC for ampliseq.	sample_id, habitat
qiime2/alpha_rarefaction.py	Transform QIIME2 alpha rarefaction wide CSV to long-format rarefaction curves.	sample, depth, iter, faith_pd
qiime2/ancombc.py	Merge ANCOM-BC differential abundance results (5 files) into one long-format table.	id, contrast, lfc, p_val, q_val, w, se, Kingdom, Phylum, neg_log10_qval, significant
qiime2/embedding_pcoa.py	Canonical-schema embedding DC for ampliseq (PCoA on Bray-Curtis).	sample_id, dim_1, dim_2
qiime2/rarefaction_canonical.py	Canonical-schema rarefaction DC for ampliseq (multi-metric).	sample_id, depth, iter, shannon, observed_features, faith_pd
qiime2/stacked_taxonomy_canonical.py	Canonical-schema stacked-taxonomy DC for ampliseq.	sample_id, taxon, rank, abundance
qiime2/taxonomy_composition.py	Transform QIIME2 barplot CSV (wide) to long-format taxonomy composition table.	sample, taxonomy, count
qiime2/taxonomy_heatmap.py	Pivot relative abundance table to wide-format heatmap matrix.	Phylum, Kingdom

---

Dashboard tabs

The ampliseq dashboard ships as a six-tab funnel (MultiQC parent + five child tabs). Filters propagate across tabs via cross-DC links on the metadata sample column — see Cross-DC links in the Reference section.

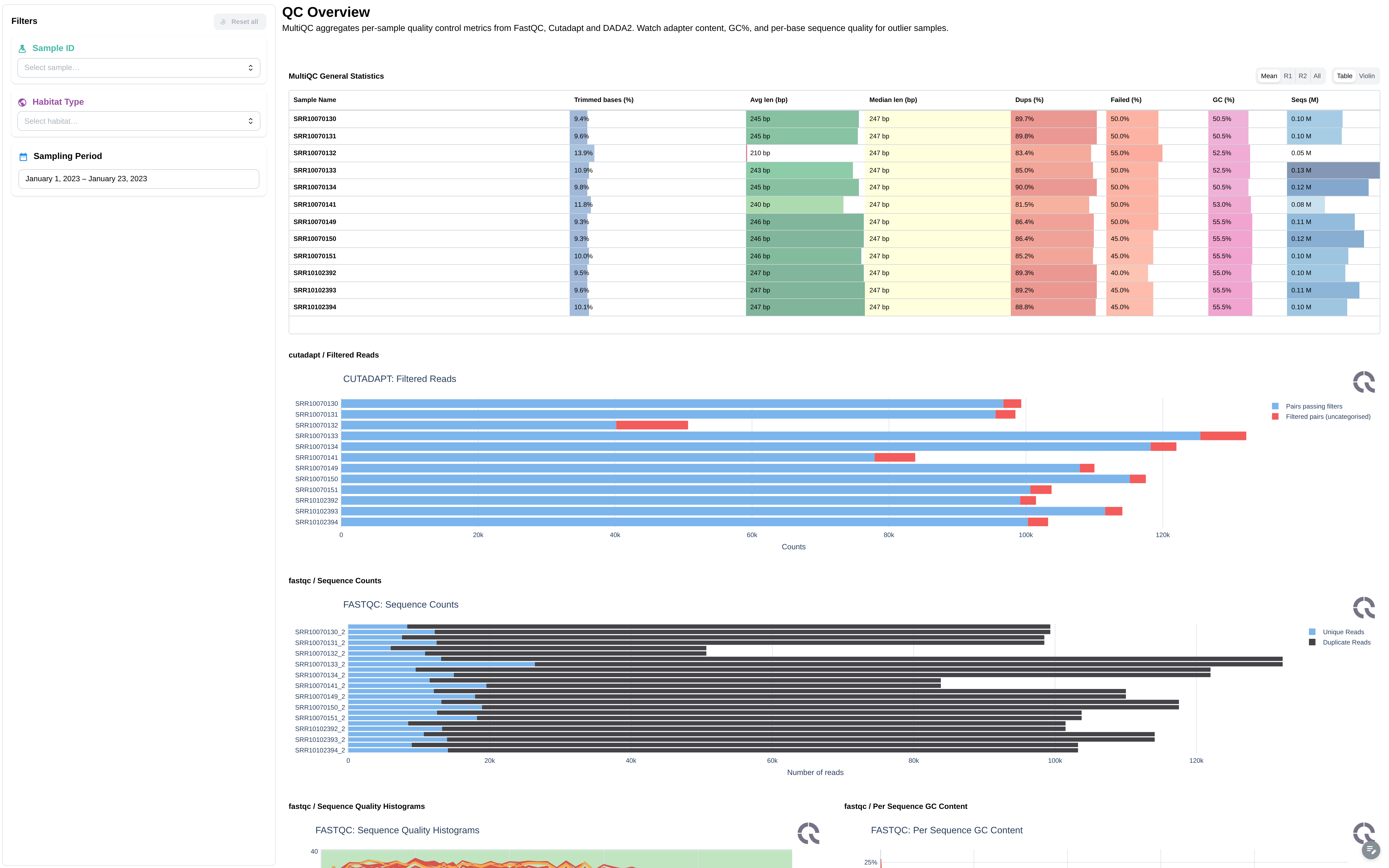

MultiQC

Quality control overview powered by MultiQC.

Filters: Sample ID, Habitat Type, Sampling Period (DatePicker).

Components:

• General stats table
• Cutadapt: filtered reads, trimmed sequence lengths
• FastQC: sequence counts, quality histograms, GC content, adapter content, status checks, Per-sequence quality / GC / N content, sequence duplication levels, length distribution

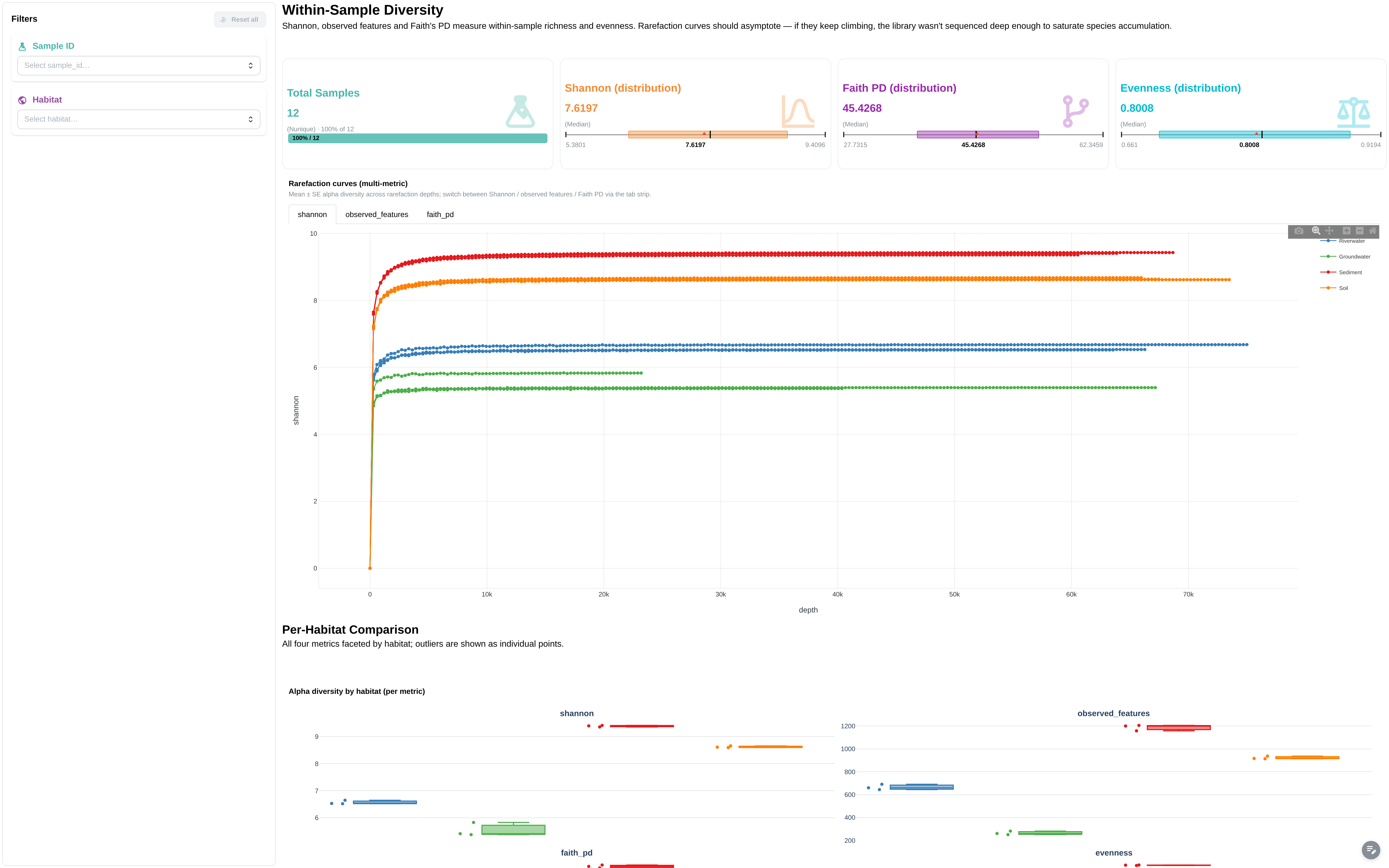

Alpha Diversity

Within-sample diversity metrics, rarefaction, and per-habitat comparisons. Extended mode only.

Filters: Sample ID, Habitat.

Components:

• 4 metric cards: Total Samples, Shannon (distribution), Faith PD (distribution), Evenness (distribution)
• Rarefaction curves (multi-metric) — advanced viz, filterable by habitat / sample via the in-tab DCLink
• Alpha diversity by habitat (per metric) — facetted boxplot
• Per-sample alpha diversity data table

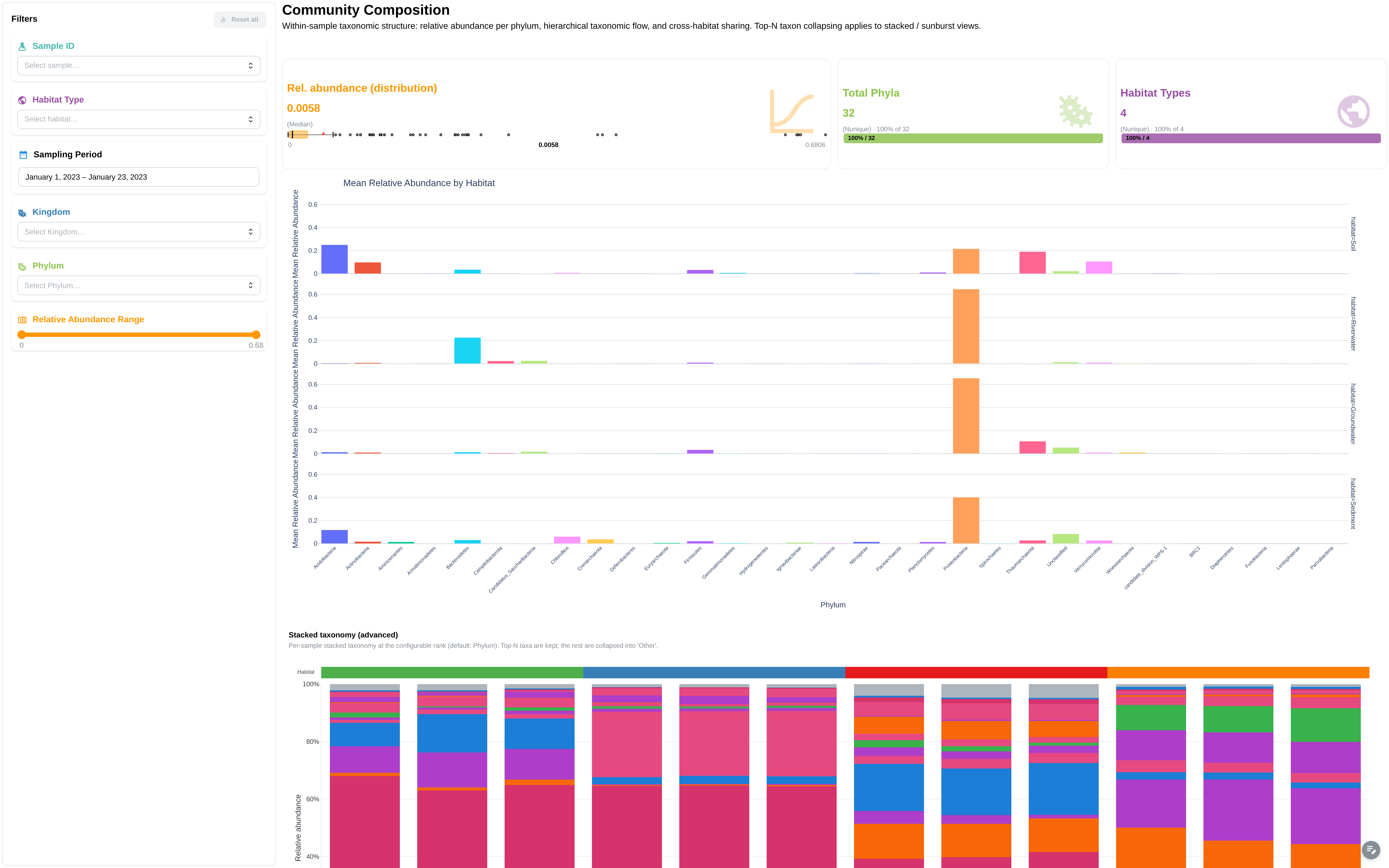

Community & Diversity

Taxonomy composition + sampling-location map (extended mode).

Components (base):

• Metric cards: total samples, total taxa, kingdoms, unique phyla
• Sunburst: Kingdom → Phylum hierarchy
• Mean relative abundance by Phylum (± std)
• Stacked bar: taxonomic composition per sample
• ComplexHeatmap: z-score normalized, clustered, with Kingdom row annotations
• Data table: taxonomy relative abundance
• Filters: Kingdom, Phylum, relative abundance range

Additional components (extended):

• Facetted bar charts by GROUP_COL
• Sampling locations scatter map
• Heatmap with habitat + city column annotations
• Filters: sampling period (DatePicker), GROUP_COL, sample ID

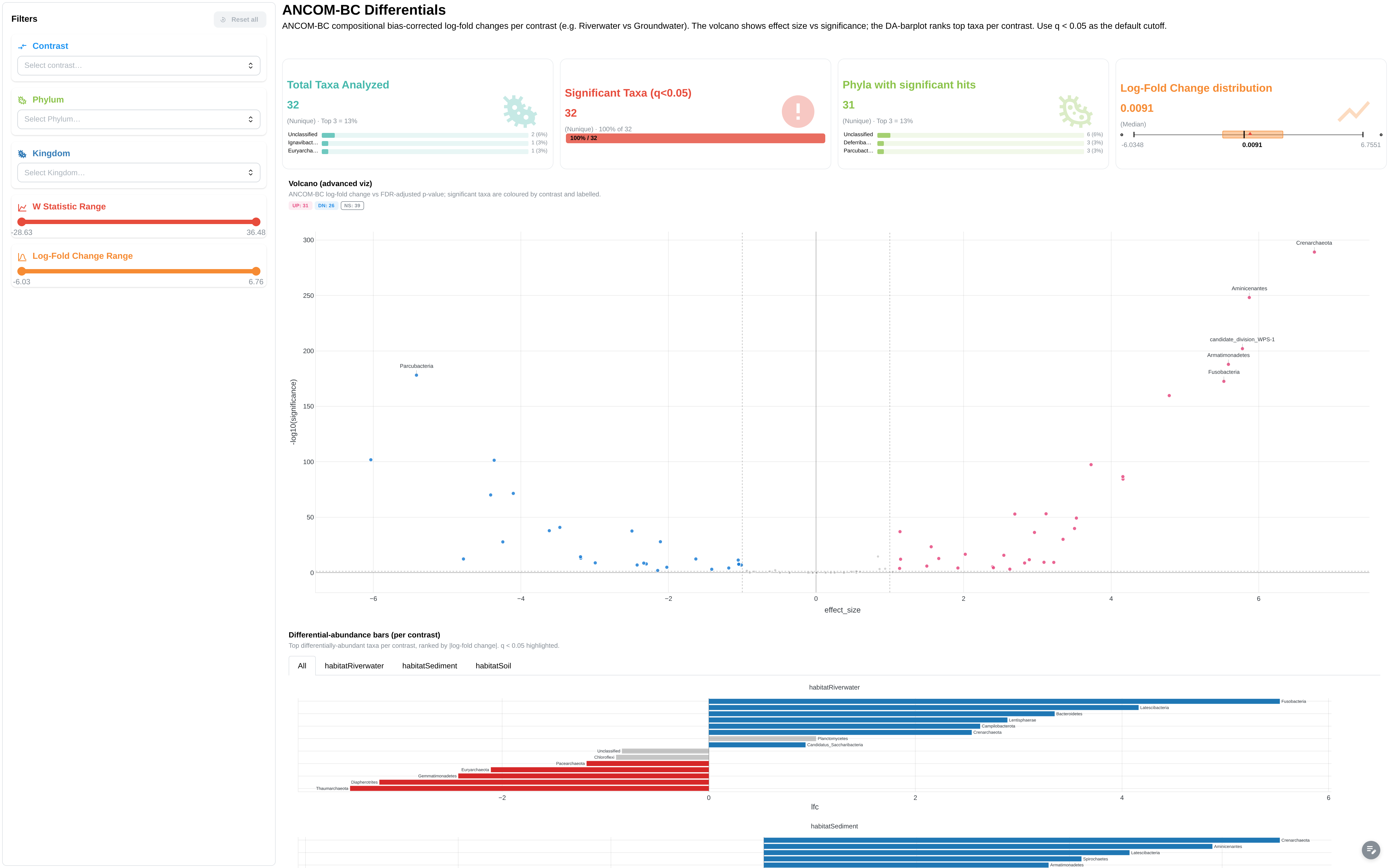

Differential Abundance

ANCOM-BC differential abundance results. Extended mode only.

Components:

• Metric cards: total taxa, significant taxa (q<0.05), unique phyla, max log-fold change
• Volcano plot: LFC vs -log10(q-value), facetted by contrast
• DA barplot: per-contrast log-fold change
• Top differential taxa bar chart
• Results data table
• Filters: contrast, Phylum, Kingdom, W statistic range, LFC range

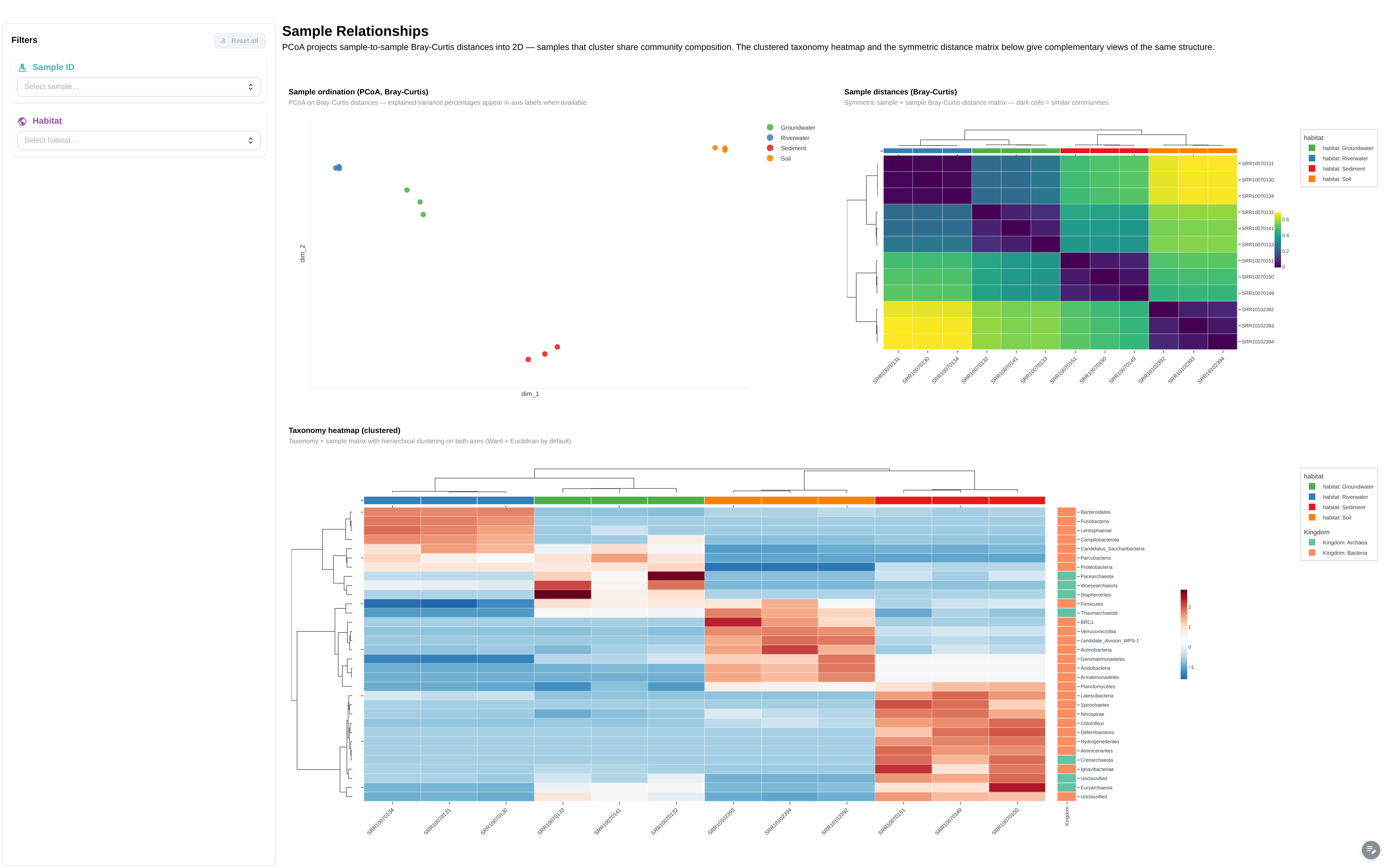

Ordination & Clustering

Beta-diversity / PCoA embedding + ComplexHeatmap on the canonical feature matrix. Surfaces clusters and outliers across samples.

Components:

• Embedding (PCoA): 2D sample projection, colour-coded by habitat
• ComplexHeatmap: clustered z-score heatmap on the canonical feature matrix
• Bray-Curtis sample-distance heatmap

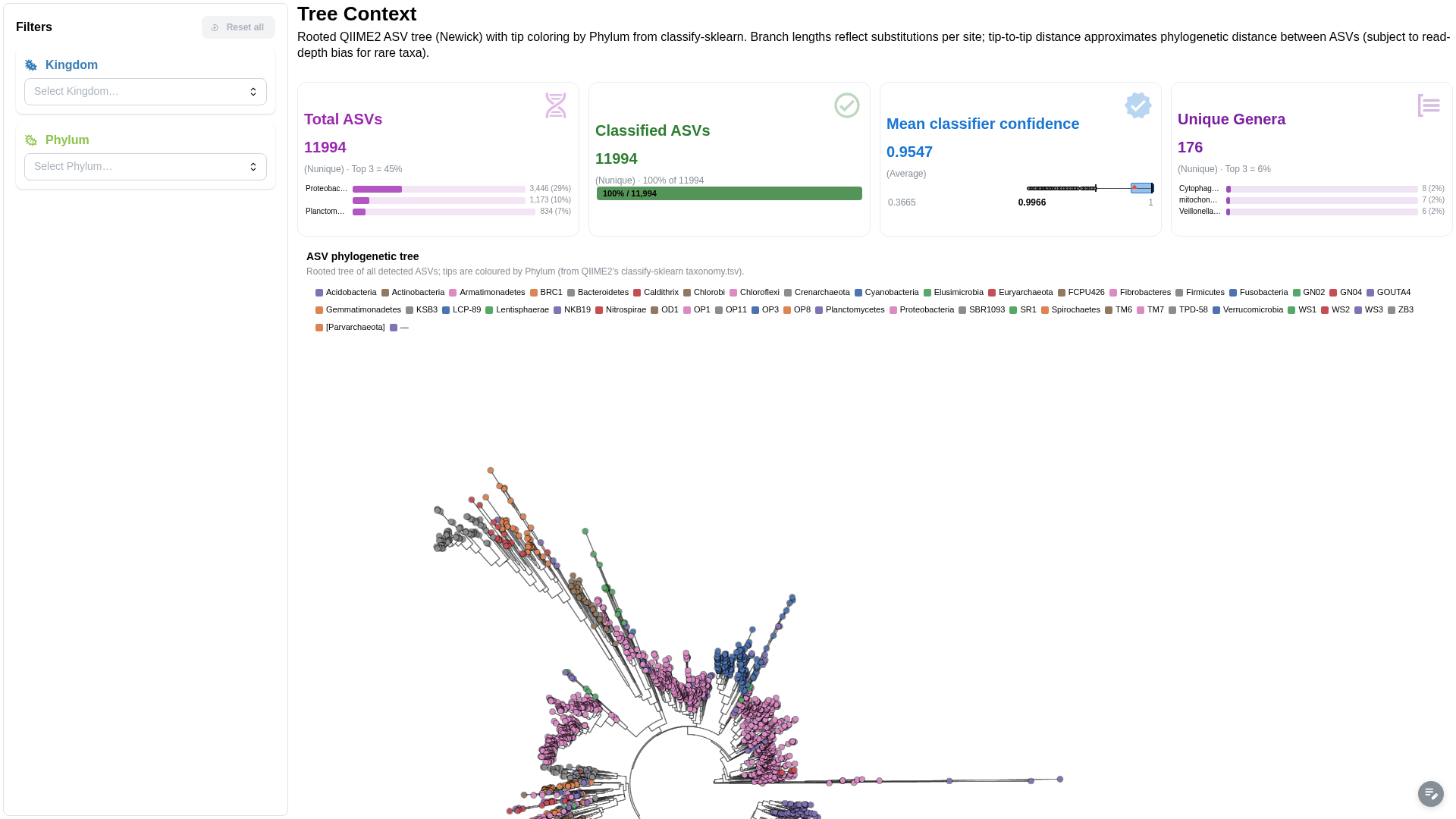

Phylogeny

Rooted phylogenetic tree of ASVs with tip metadata overlay.

Components:

• Phylogenetic tree viewer (Newick) with metadata-annotated tips

---

Running the pipeline

Depictio reads the output of nf-core/ampliseq — it does not run the pipeline. Run the pipeline first:

nextflow run nf-core/ampliseq \
  --input samplesheet.csv \
  --FW_primer GTGYCAGCMGCCGCGGTAA \
  --RV_primer GGACTACNVGGGTWTCTAAT \
  --metadata Metadata.tsv \
  -profile docker

Then point Depictio at the results:

depictio run --template nf-core/ampliseq/2.16.0 \
  --data-root results/ \
  --var SAMPLESHEET_FILE=samplesheet.csv \
  --var METADATA_FILE=Metadata.tsv

See nf-co.re/ampliseq/usage for full pipeline documentation.

---

Required data structure

Point --data-root to the directory containing your ampliseq outputs. This can be a single run's results/ folder or a parent directory containing multiple runs — Depictio scans recursively. Not all files are required; the template adapts based on what's present and which --var flags you provide.

<DATA_ROOT>/
├── samplesheet.csv                                # --var SAMPLESHEET_FILE
├── Metadata.tsv                                   # --var METADATA_FILE (optional)
└── <run_id>/                                      # One or more pipeline run output folders
    ├── multiqc/
    │   └── multiqc_data/
    │       └── multiqc.parquet
    └── qiime2/
        ├── alpha-rarefaction/                      # ⚠ Requires --metadata
        │   └── faith_pd.csv
        ├── ancombc/differentials/                  # ⚠ Requires --metadata + --ancombc
        │   └── Category-<GROUP_COL>-level-2/
        │       ├── lfc_slice.csv
        │       ├── p_val_slice.csv
        │       ├── q_val_slice.csv
        │       ├── se_slice.csv
        │       └── w_slice.csv
        ├── barplot/
        │   └── level-2.csv
        ├── diversity/alpha_diversity/              # ⚠ Requires --metadata
        │   └── faith_pd_vector/
        │       └── metadata.tsv
        └── rel_abundance_tables/
            └── rel-table-2.tsv

---

Additional resources

• nf-co.re/ampliseq — official pipeline documentation
• nf-co.re/ampliseq/2.16.0/results — AWS test results
• Template System Reference — YAML format, variables, conditionals
• Recipes — how to read, test, and write recipes
