Comments and Annotations¶

Discuss a dashboard where the data is: comment threads on a component or a whole tab, and annotations drawn on top of charts, tables and maps.

Overview¶

There are two things you can attach to a dashboard:

Comments: a thread on one component, or on the whole tab. Threads take replies, can be resolved and reopened, and remember the filters and the selection that were active when they were written.
Annotations: a shape drawn on a component, in the style of newsroom charts: a highlighted range, a reference line, a set of marked points or rows, or a note with an arrow. Every annotation is also a thread, so it has the same badge, the same drawer and the same discussion as a plain comment.

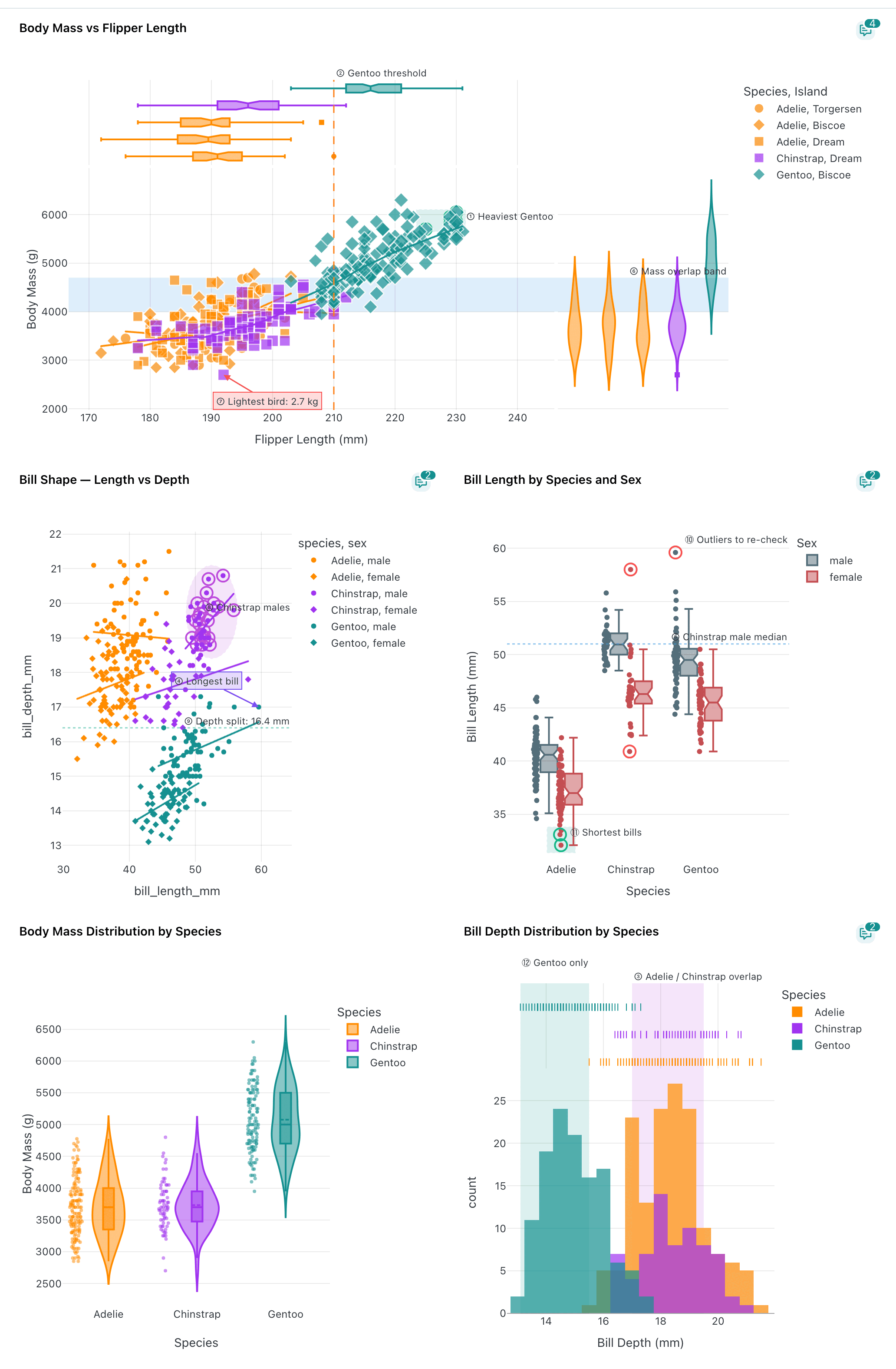

One section of the Palmer Penguins dashboard with annotations on four charts: x and y ranges, reference lines, arrow notes, marked points inside a shaded box or lasso region, and rings on box-plot outliers.

Stored outside the dashboard

Threads and annotations are kept in their own MongoDB collection, not in the dashboard document. Saving the dashboard or editing its layout never drops them, and after a YAML re-import they re-attach to their components (see below). They are not part of a dashboard's YAML export, but backups include them. Deleting a dashboard, a tab or a project deletes its threads. Annotations are drawn by the viewer on top of the figure at render time: nothing is recomputed on the server, and the component's own definition is unchanged.

Comments and annotations live in the dashboard viewer (/dashboard/{id}), not in the editor.

Who can see what¶

Who	Comments and annotations
Project owners and editors	Read and write every thread on the project's dashboards
Instance admins	Same as owners
Project viewers	No threads, no badge, no drawer. They see only the annotations switched to Visible to viewers, as a shape and a label
Visitors of a public project, anonymous users	Same as viewers: published annotations only, never a discussion
Single-user mode	The session is the instance admin, so everything is available

The discussion itself is never shown to viewers. Publishing an annotation exposes its shape, its colour and its label, nothing else.

Thread actions follow the author:

anyone who can comment can reply, resolve, reopen, edit an annotation and change its visibility;
you can edit or delete your own comments; a project owner can also delete anyone's comment (it is replaced by Comment deleted);
a whole thread can be deleted by its author, a project owner or an admin.

The comments drawer¶

There are two ways in, both visible only to editors and owners:

the Comments button in the dashboard header opens every thread of the current tab. Its badge counts open threads (or, when there are none, proposals awaiting review), and its tooltip also counts threads whose data changed;
the comments icon in a component's action bar opens that component's threads. A number badge counts open threads, a pulsing violet dot flags agent proposals awaiting review, and the icon turns orange when one of the component's open threads no longer matches its data or its definition (see When the data or the component changes).

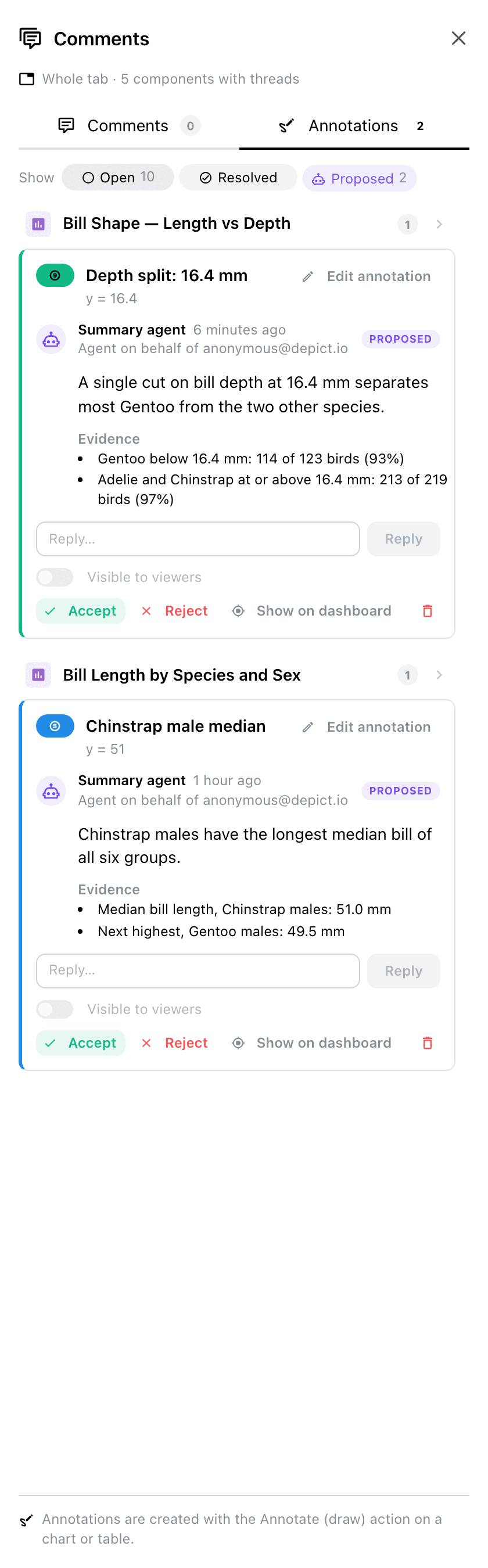

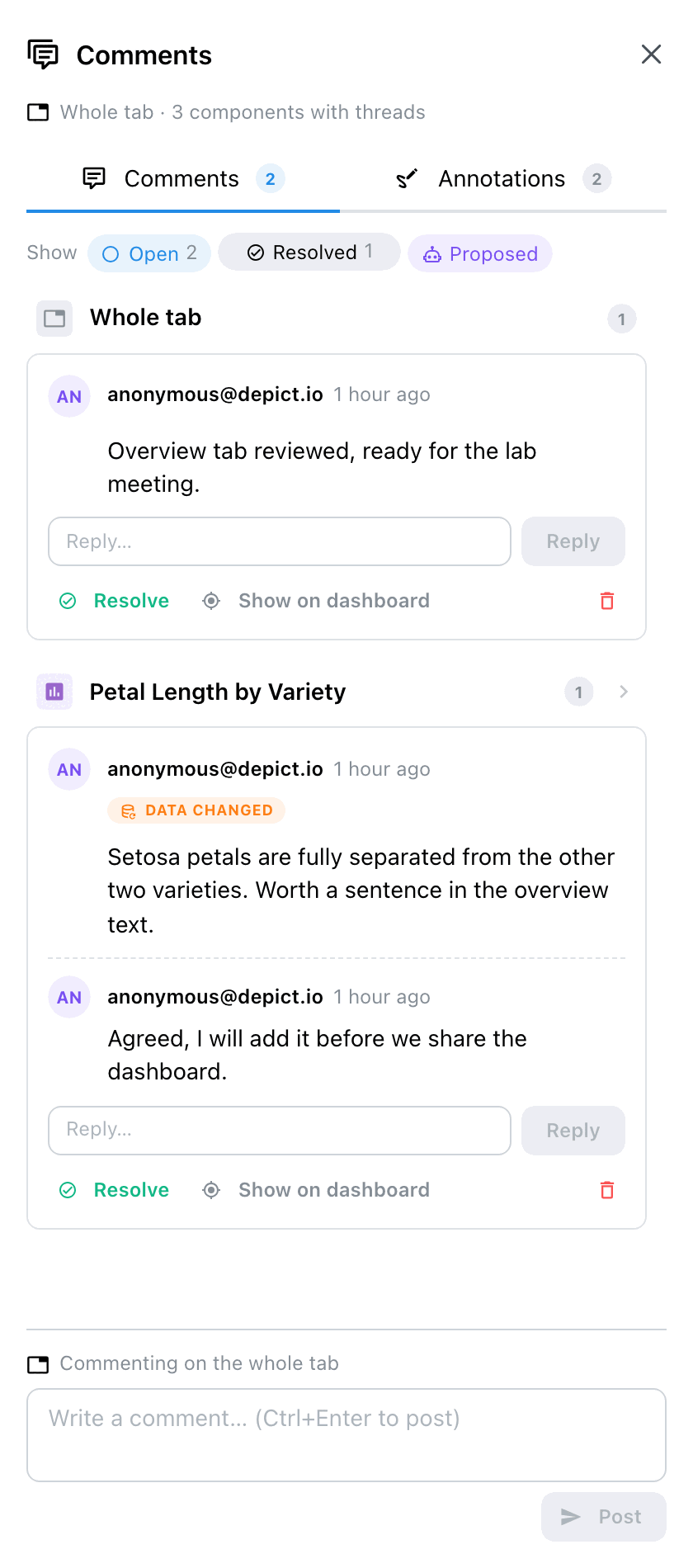

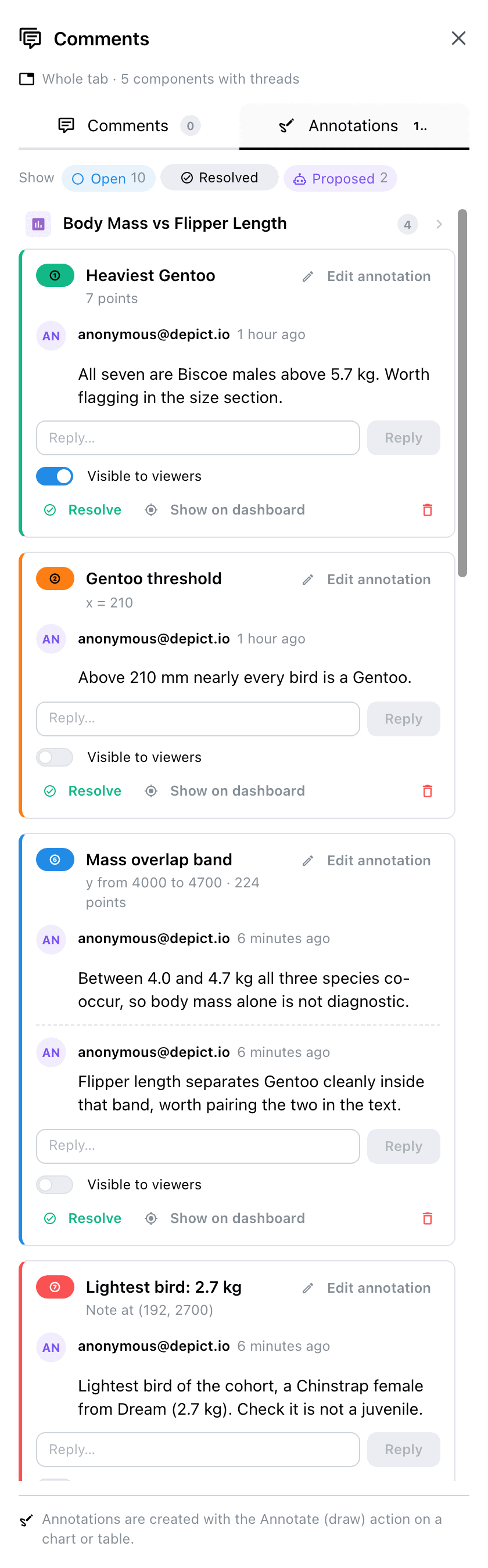

Left: the Comments tab on the whole tab, with a thread flagged Data changed. Right: the Annotations tab, grouped by component, each card carrying its numbered badge.

The drawer docks on the right without covering the dashboard, so clicking a thread can scroll the page to its component:

Scope line. Under the title, either Whole tab · N components with threads, or On followed by the component's name. The pill's x goes back to the whole tab. In the whole-tab view, threads are grouped by component; clicking a group header narrows the drawer to that component.
Comments / Annotations. Two tabs, each with its count. Plain comments and annotations are listed apart.
Show. Status chips: Open, Resolved and Proposed. Open and Proposed are on by default.

Writing a comment¶

The composer sits at the bottom of the Comments tab. It says what you are commenting on (Commenting on the whole tab, or a component's name), and lists what will be attached:

the active filters (N active filters will be attached);
the current selection on that component, when there is one (points, bars or rows selected on the dashboard).

Type the comment and press Post (or Ctrl+Enter). A comment holds up to 4,000 characters.

Working with a thread¶

Each thread card shows its author, the time it was written, its status, and badges for what it captured (a selection, N filters) and for staleness. Below the discussion:

Action	Effect
Reply	Adds a comment to the thread (up to 500 per thread)
Resolve / Reopen	Moves the thread between Open and Resolved
Show on dashboard	Scrolls to the component, highlights it, and re-applies the thread's filters and selection
Delete thread	Deletes the thread and all its replies, after a confirmation

Show on dashboard restores the view, not the past

The filters and selection come back, but they are applied to today's data and to the component as it is now. If either changed since the thread was written, the thread says so (see below). If the component was removed, a notice says so instead of scrolling.

Annotating a component¶

Annotation shapes¶

Tool	Kind	What it draws
Range on x / Range on y	Range highlight	A band across one axis, behind the data. Drag a box: only its x (or y) extent is kept
Vertical line / Horizontal line	Reference line	A dashed line at one x or y value, in front of the data. Click to place it
Mark points (lasso) / Mark points (box)	Marked points	Rings around the selected points or bars, optionally with the selected area shaded behind them
Note	Note	A numbered label with an arrow pointing at a data point. Click a point to attach it

Shapes are stored in data coordinates, so they keep their place when the figure is resized, zoomed or redrawn. Marked points are stored by the component's selection column when it has one, so they follow their rows across re-sorting and re-ingestion; charts without one (bars, histograms) store plain coordinates.

Drawing an annotation¶

Hover the component and click Annotate () in its action bar. A tool palette appears in the top-left corner of the figure, with a one-line hint under it.
Pick a tool. Zoom and pan stay available from the Plotly modebar; while they are active no tool is highlighted, and clicking a tool again goes back to drawing.
Draw. The shape appears as a dashed preview with a live count, for example 18 points in range or 40 points.
Fill in the popover: a Label (required, up to 120 characters), a Color, for marked points Highlight the selected area and its Area opacity, an optional Comment to start the discussion, and Visible to viewers. Press Save.
Click (or press Esc) to leave annotate mode.

Drawing never touches the dashboard: annotate mode detaches the component's cross-filtering, so a lasso drawn for an annotation does not filter or clear anything.

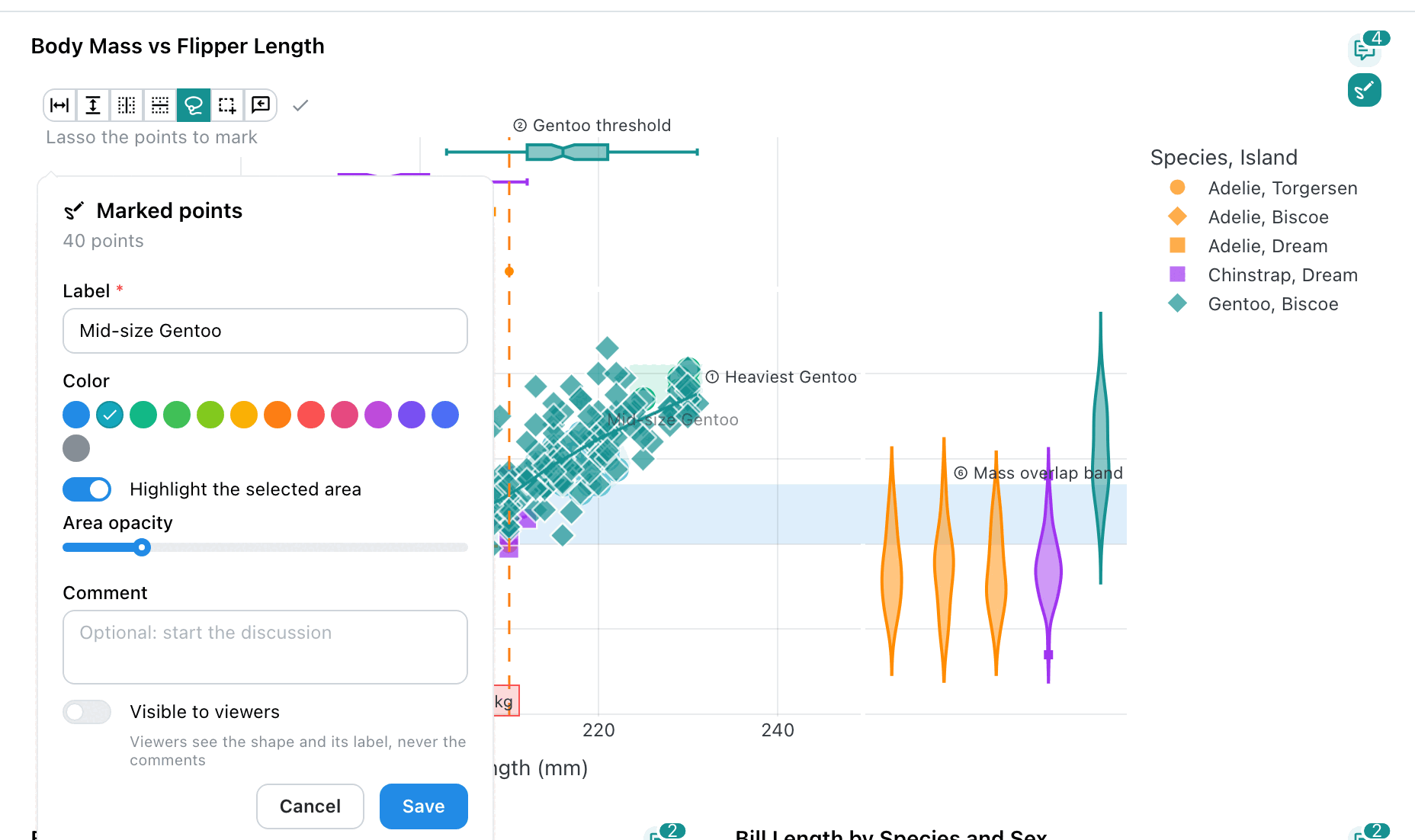

Annotate mode on a scatter plot: the tool palette with Mark points (lasso) active, the lassoed points previewed on the chart, and the form for the new annotation.

Each annotation gets a number on its tab, shown as a badge (①, ②, ...) in the annotation's colour, on the chart and on its card in the drawer. Hovering a label on the chart shows what it covers, such as the range and the number of points inside it.

ScatterLasso regionBox plotHistogram

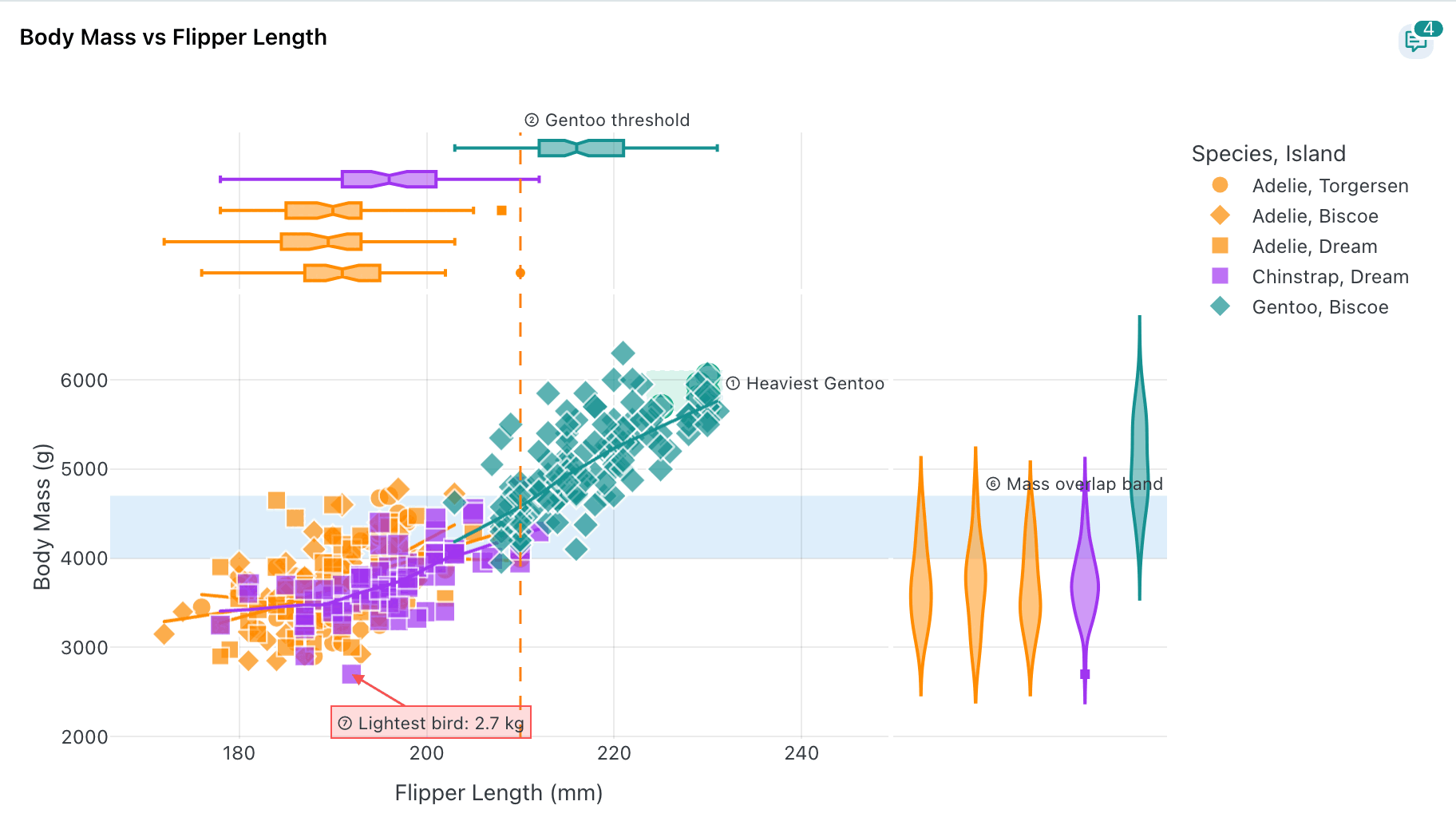

A y range, an arrow note, points marked inside a shaded box, and a threshold line.

Scatter plot with a y band, an arrow note, marked points and a vertical threshold line

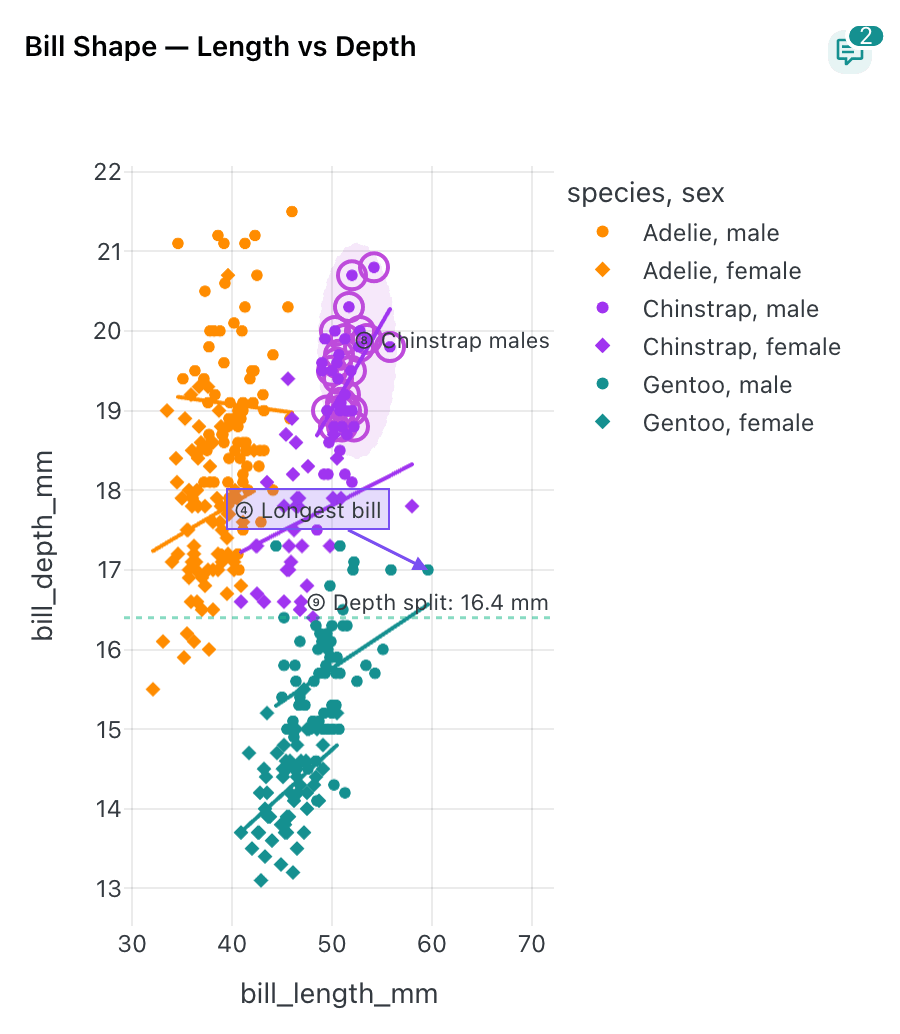

A lasso region around one group of points, with a note and a reference line.

Scatter plot with a shaded lasso region around ringed points

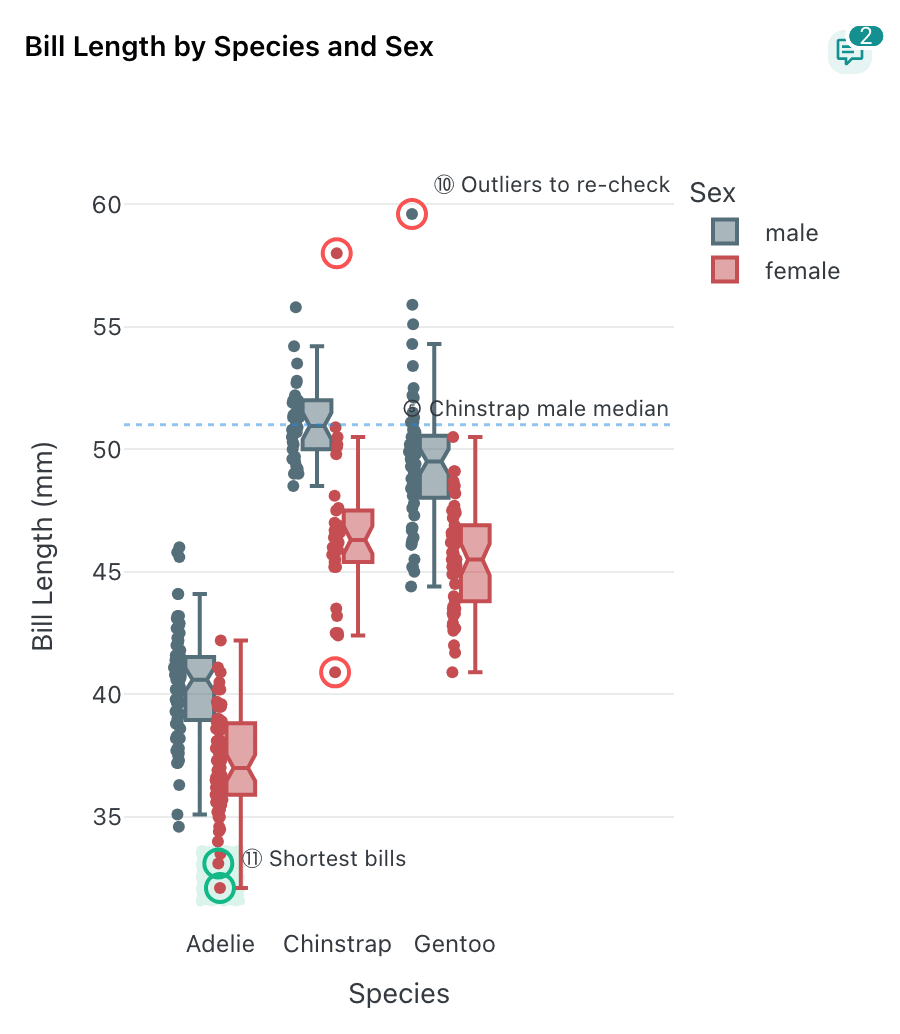

Rings on box-plot outliers, drawn where the points actually sit.

Box plot with rings around individual outlier points

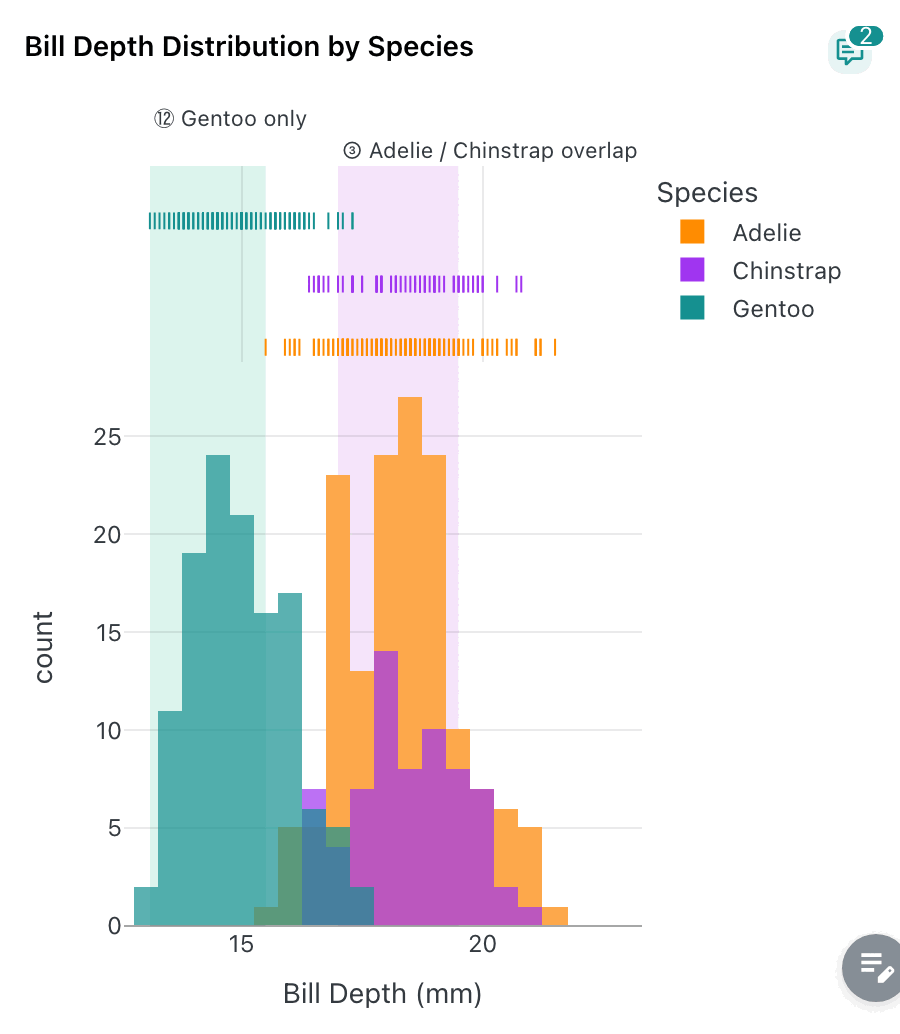

Two x ranges on an overlaid histogram.

Histogram with two shaded x ranges

Editing an annotation¶

Click an annotation's label (or one of its rings) on the chart. A popover opens in place, titled after its kind, with:

Label and Color;
for a range highlight: Opacity;
for a reference line: Line style (Solid, Dashed, Dotted) and Line width;
for marked points: Ring width, and Highlight the selected area with its Area opacity when the points were drawn with a region.

Changes are previewed live on the chart; Cancel puts the saved version back. The popover also offers Open discussion, which jumps to the thread in the drawer, and Delete annotation. The same editor opens from Edit annotation on the thread's card in the drawer.

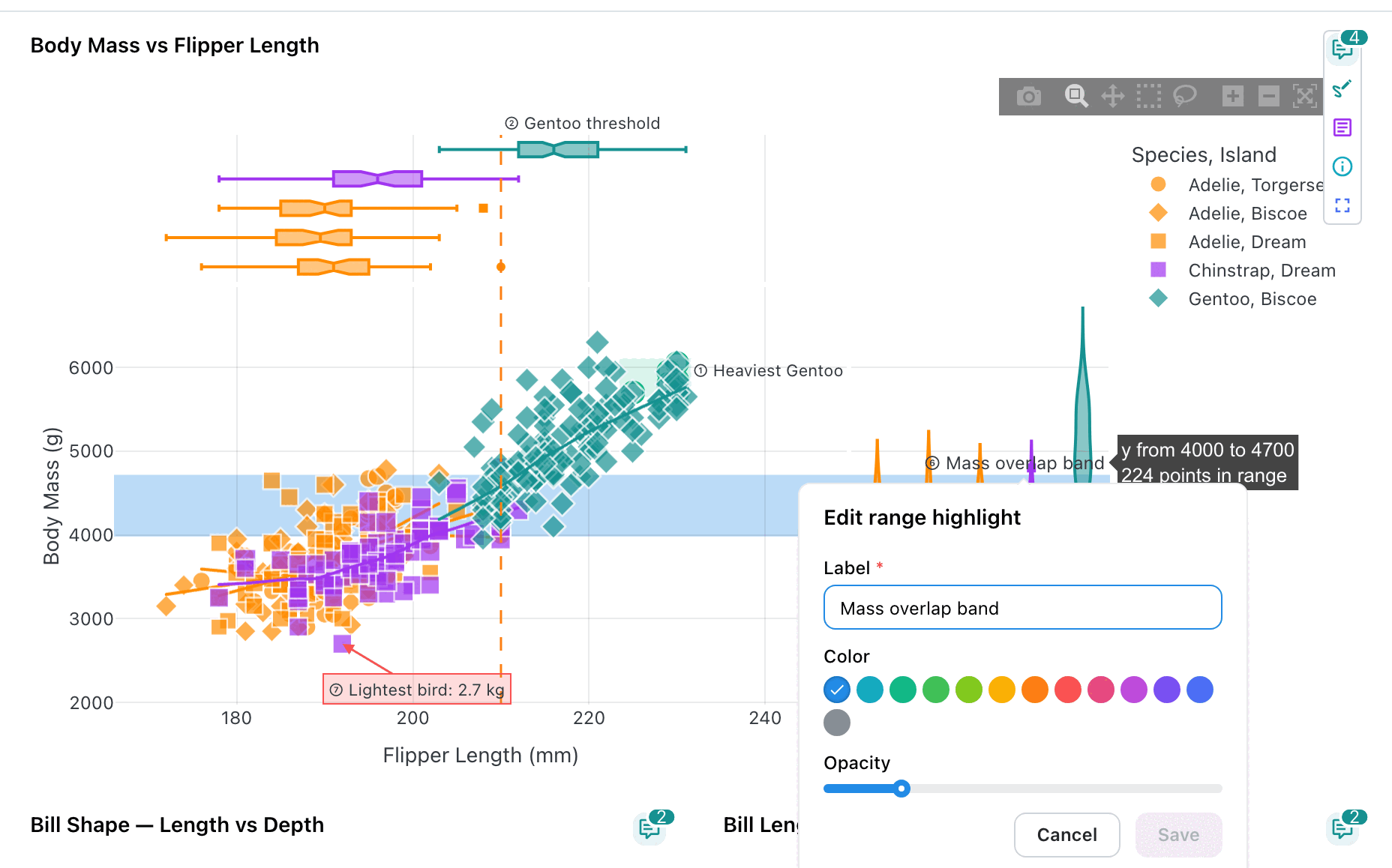

Clicking the label of a range highlight: its hover summary, and the inline editor with the label, the colour and the opacity.

Showing an annotation to viewers¶

Visible to viewers is off by default: a new annotation is internal to the project's editors and owners. Switch it on, in the creation form or on the thread's card, and viewers of the dashboard see the shape and its label. They never see the discussion, and clicking a published annotation opens nothing for them. An agent's annotation cannot be published until a person accepts it.

Where you can annotate¶

The Annotate action only appears on components that can take a shape. Comments work on every component, and on the tab itself.

Component	Annotations
Figures	Every cartesian Plotly figure: all four shapes. 3D, polar, pie and hierarchical charts (sunburst, treemap, icicle) and parallel coordinates are comment-only
Advanced visualizations	The single-panel cartesian kinds: volcano, MA, QQ, Manhattan, embedding (2D only), scatter, DA barplot, ANCOM-BC differentials, stacked taxonomy, rarefaction, enrichment, dot plot, lollipop (one gene shown), PR benchmark, ROC / PR curve, confusion matrix, metric CI bars, profile, GSEA running score (single panel) and coverage track (single panel, not in the Locus view)
MultiQC figures	Line and bar graphs and other plots drawn on one pair of axes. Marked points are stored as sample names, so marking a line graph rings whole sample lines. Multi-panel figures are comment-only
MultiQC General Stats	Row annotations in the table view, keyed on the sample name (not in the violin view)
Tables	Tables with a row-id column (`row_selection_column` or `selection_column`): rows can be marked
Maps	Scatter and choropleth maps: Mark points (lasso or box, with an optional shaded longitude / latitude region) and Note. Ranges and lines have no meaning on a map. Density maps are comment-only

Multi-panel and non-cartesian advanced visualizations (complex heatmap, oncoplot, signal matrix, sashimi, UpSet, sunburst, Sankey, phylogeny) stay comment-only: a shape needs a single pair of axes.

Advanced visualizationsMultiQC line graphMultiQC General StatsTableMap

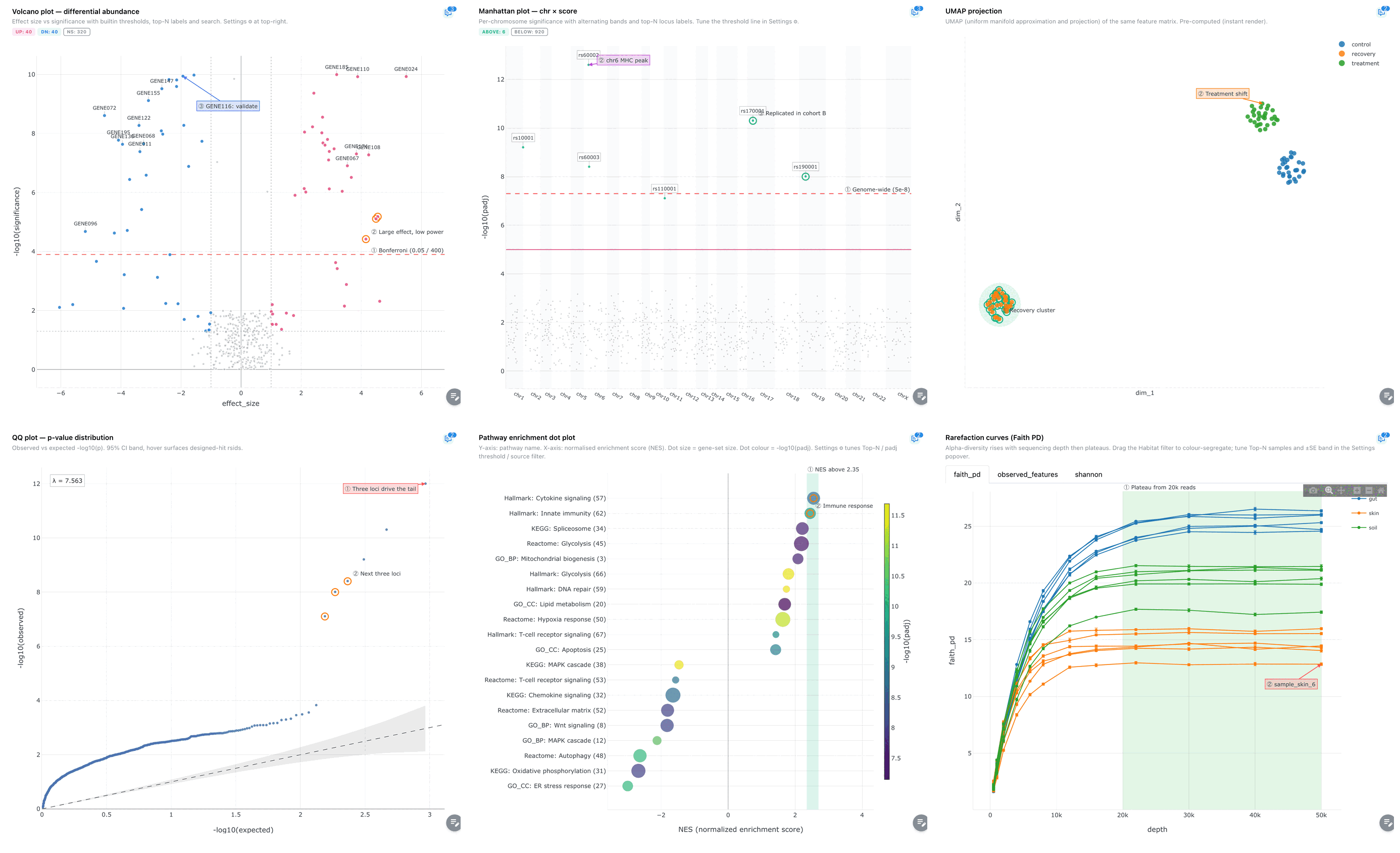

A significance line, marked genes and notes on a volcano plot; a genome-wide line and a peak note on a Manhattan plot; a lasso cluster on a UMAP; marked loci on a QQ plot; an NES range and marked terms on an enrichment dot plot; a plateau range on rarefaction curves.

Six advanced visualizations, each carrying ranges, lines, marked points or notes

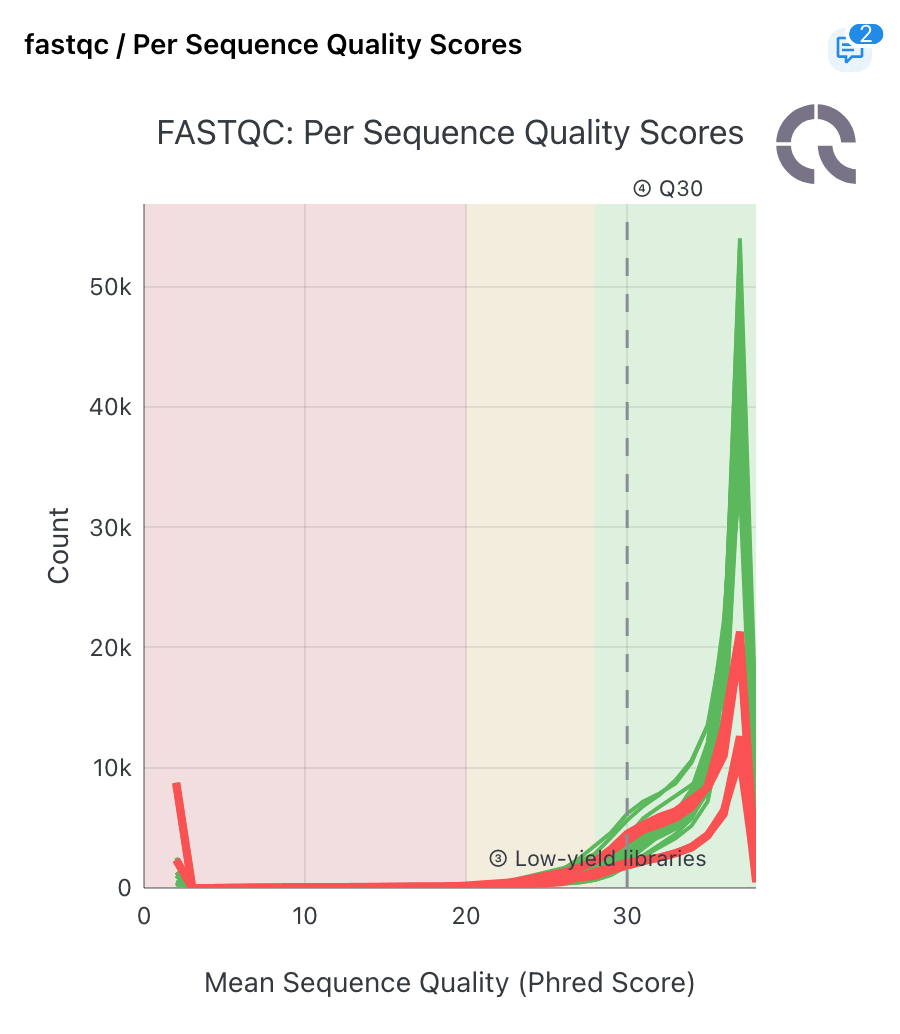

Sample lines marked as a whole, and a quality threshold line.

MultiQC line graph with marked sample lines and a horizontal threshold line

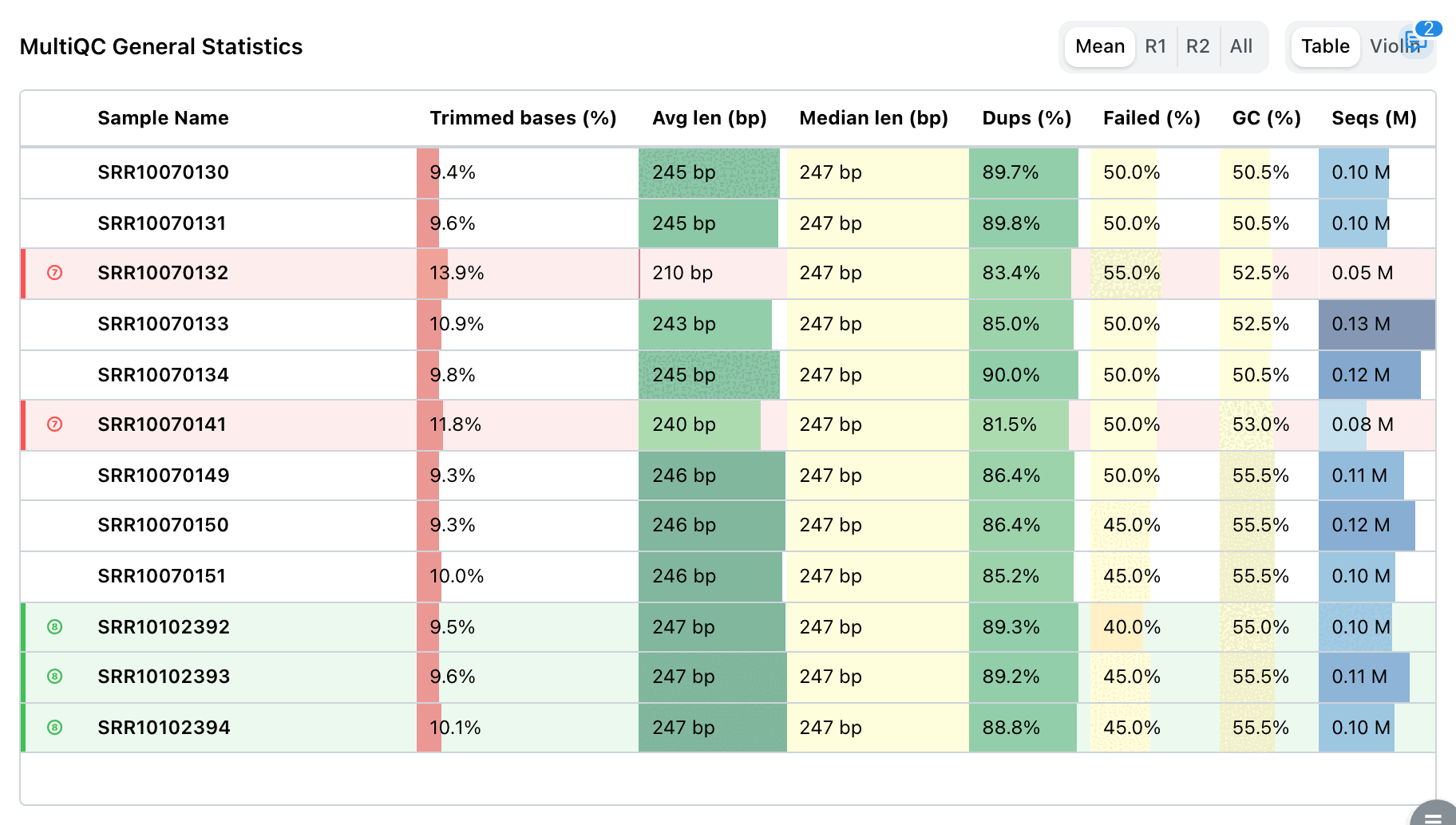

Annotated rows in the General Statistics table.

MultiQC General Statistics table with numbered annotation badges on rows

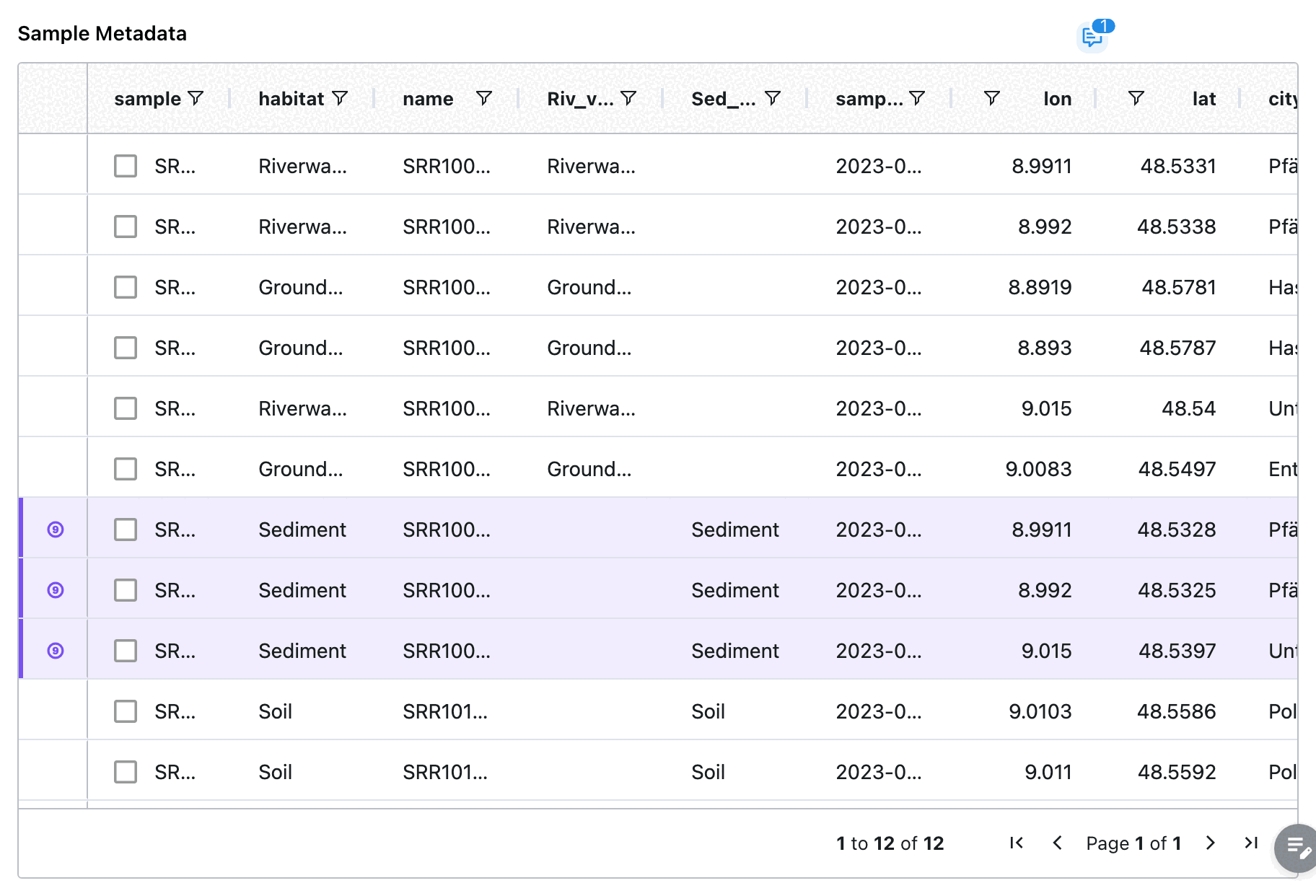

Marked rows, with their badges in the pinned annotation column.

Table with marked rows and numbered badges in a pinned column

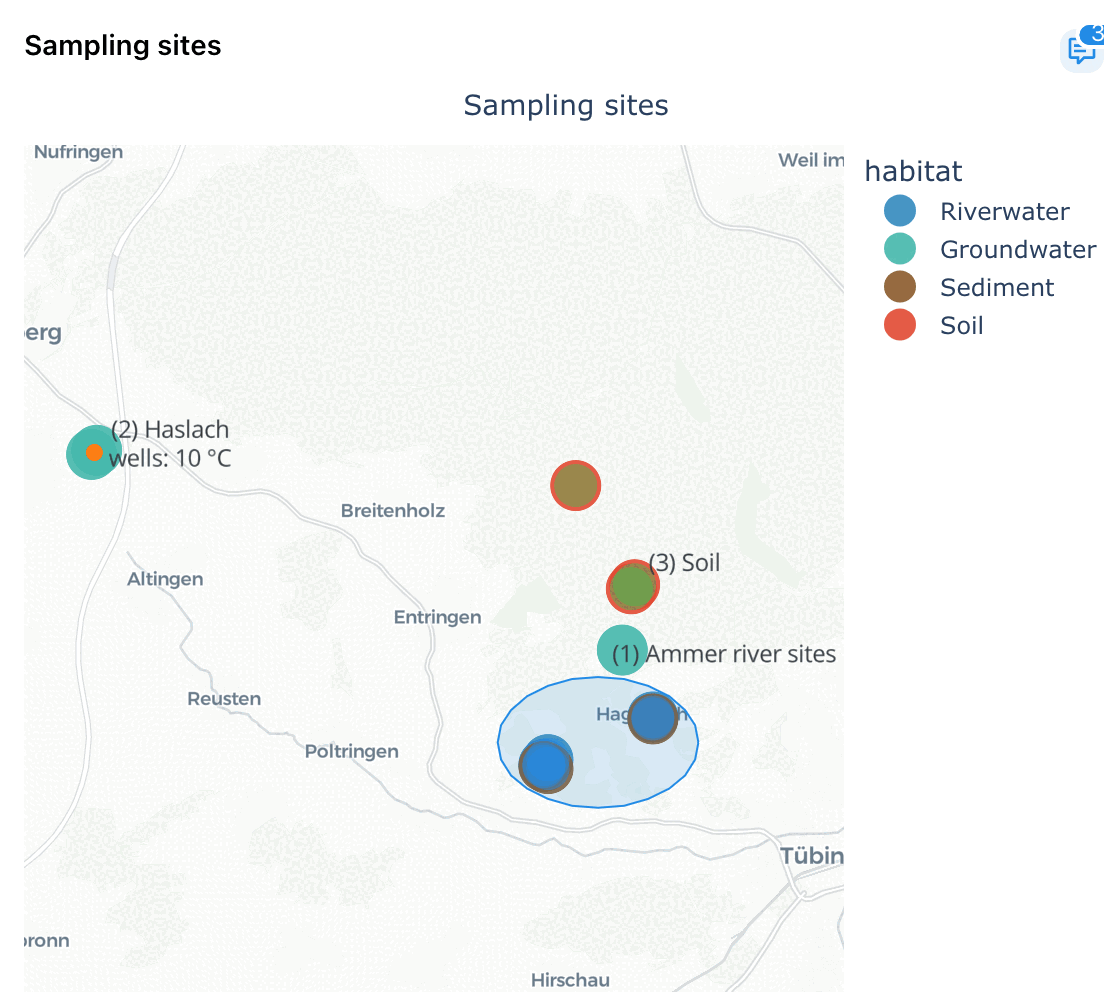

A shaded longitude / latitude region, marked sites and a note on a scatter map.

Scatter map with a shaded region, ringed sites and a numbered note

Marking table rows¶

In annotate mode a table shows a single Mark rows tool in its top-right corner. Click rows to select them, then press Mark N selected rows. Marked rows get the annotation's numbered badge in a narrow column pinned to the left of the grid.

Components with several views¶

Some components show one of several plots: a MultiQC component switching dataset, between counts and percentages or to a log scale, and advanced visualizations whose tile offers several views on different axes (volcano / MA / QQ, marker dot plot / enrichment, PR / ROC). An annotation remembers the view it was drawn on and only appears on that view, so a line drawn on the volcano never lands on the MA plot's axes.

When the data or the component changes¶

When a thread is written, Depictio records a fingerprint of the component's definition and of every data collection it reads. Each time threads are listed, both are compared with the dashboard as it is now, and the thread card shows:

Badge	Meaning
Data changed	A data collection the component reads was processed again since the thread was written. Any new aggregation counts, even a re-ingest of identical files
Component changed	The component's definition was edited. Moving or resizing the tile does not count
Component removed	The component is no longer on the tab
M of N found	Some of the points or rows an annotation marked are not in the chart's current data

Open threads with changed data or a changed component also turn the component's comments icon orange, so staleness is visible on the dashboard without opening the drawer.

After a dashboard is re-imported from YAML, components may come back with new identifiers. A thread whose component seems gone re-attaches itself to the component with the same title, when exactly one component on the tab has that title.

Agent proposals¶

Threads and annotations can also be written by an agent, through the comments API. An agent always acts on behalf of the user whose credentials it uses, and its threads are held for review:

an agent's thread starts as Proposed. Its annotation is drawn faded and dashed, and it appears under the Proposed chip;
the card shows the agent's name, Agent on behalf of the person who launched it, and the Evidence the agent attached (structured claims backing its comment);
Accept turns the proposal into an ordinary open thread. Reject asks for an optional reason, then hides the thread and keeps the decision;
a proposal cannot be resolved, and its annotation cannot be made Visible to viewers, until it is accepted. If a person edits a proposed annotation, the card says Edited by a human.

Running the same agent again updates its earlier pending (or rejected) proposals instead of duplicating them; a re-proposed rejection goes back to review. One agent run can open at most 50 threads.

Comments are data, not instructions

The text of a comment is never treated as an instruction for an agent reading the dashboard.

Known limits¶

A range on a categorical axis stores category positions, so it moves if the order of the categories changes.
Rings on box, violin and bar points are drawn as shapes: hover and click-to-edit go through the numbered label there.
On charts with marginal plots, y ranges and horizontal lines also span the marginal panels.
When the id column repeats a value, a mark resolved by id rings only the first matching row.
Long labels placed in data coordinates can stretch the axis range, and labels near the edge of the plot can be clipped.
On maps, labels are numbered (1), (2), ... rather than ①, ②.
There are no mentions or notifications yet.
