Recipes

Recipes are the data transformation layer of the Depictio CLI. They convert raw bioinformatics pipeline output files into clean, dashboard-ready Polars DataFrames — automatically, reproducibly, and with full validation.

Upstream — Workflow

Bioinformatics pipeline
nf-core / Nextflow / Snakemake

↓

Raw output files

• wide CSV
• nested TSV
• non-standard headers

↓

Recipe

• reformat & reshape
• wide → long
• rename columns
• compute metrics

↓

Downstream — Depictio

Tidy DataFrame

• long format
• clean schema
• validated types

↓

Dashboard figures & tables

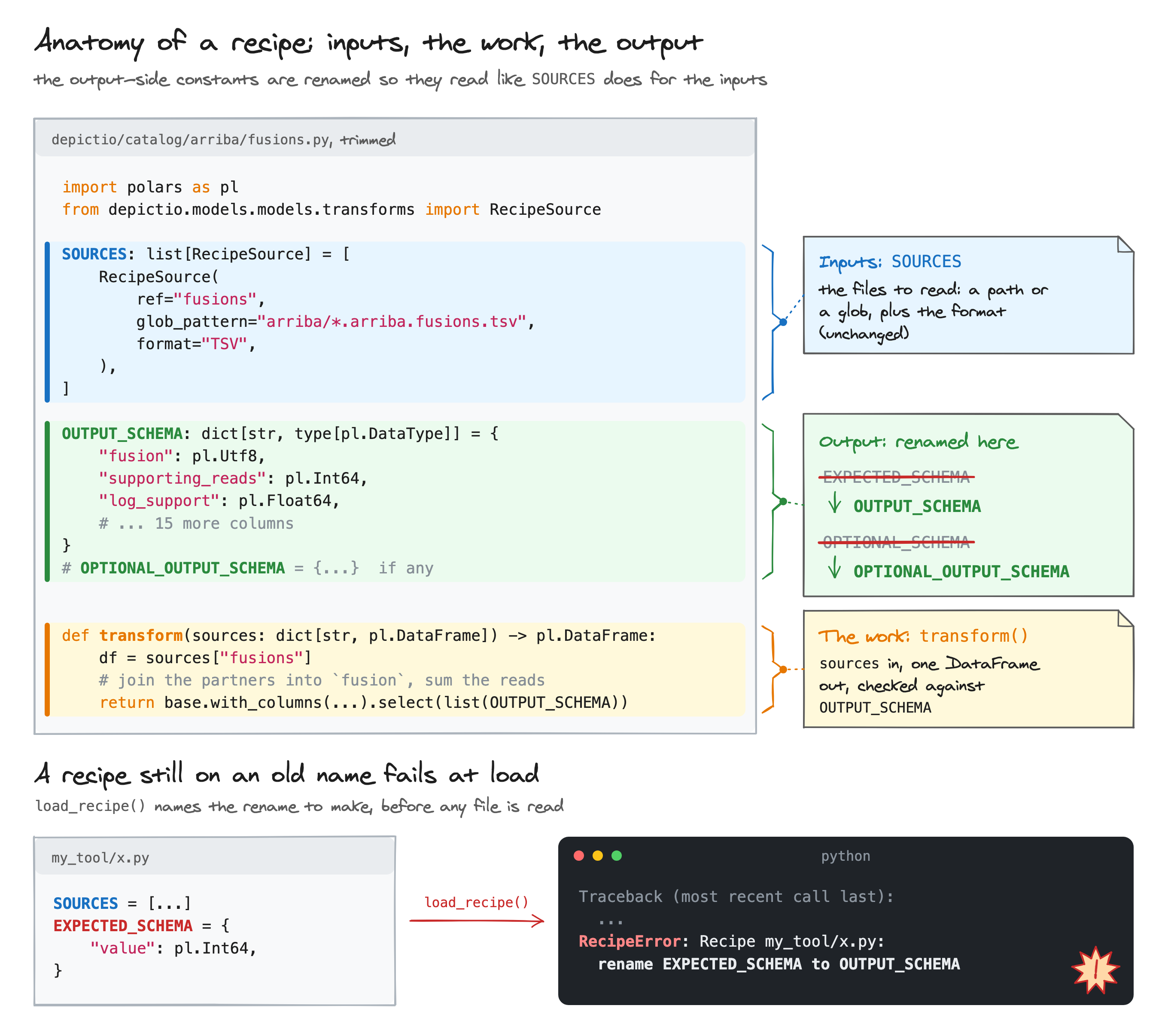

What is a Recipe?

A recipe is a plain Python module that describes how to transform one or more raw files into a single tidy DataFrame. Each recipe lives in depictio/projects/<pipeline>/recipes/ and declares:

• SOURCES — input files to read (paths relative to --data-dir, or references to other data collections via dc_ref)
• EXPECTED_SCHEMA — required output columns and their Polars data types
• OPTIONAL_SCHEMA (optional) — columns that may or may not be present (e.g. user-defined metadata columns)
• transform(sources) — a pure function that takes loaded DataFrames and returns the output DataFrame

Recipes are used in two ways:

1. Standalone testing — depictio recipe run executes a recipe locally against a data directory, so you can validate your data before registering a project.
2. Project integration — a data_collection with source: "transformed" tells the CLI to run the recipe during depictio run, storing the result as a Delta Lake table.

---

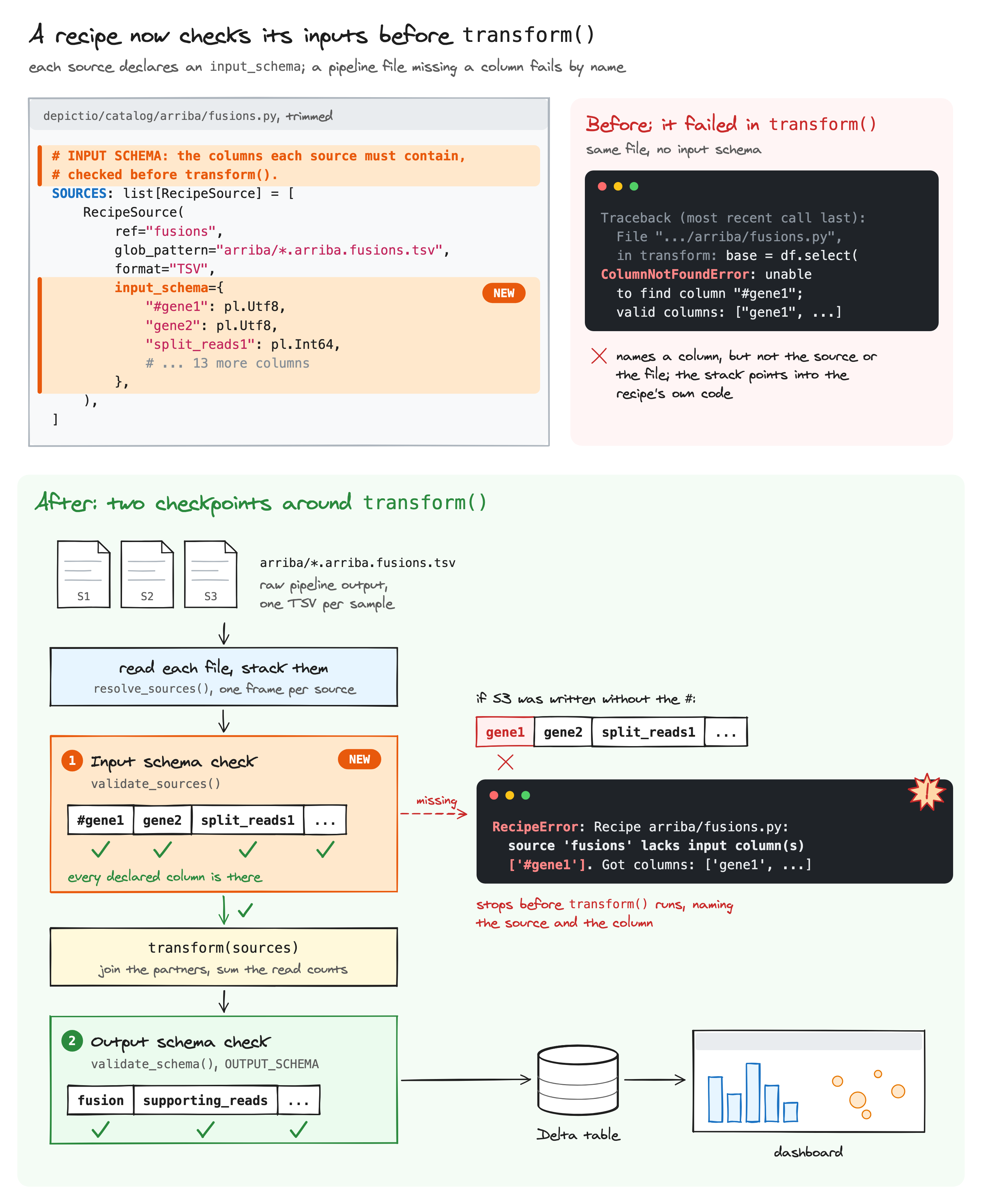

The 4-Checkpoint Validation Pipeline

Every recipe execution — whether via depictio recipe run or depictio run — runs through four automatic checkpoints:

#	Checkpoint	What it checks
1	Load	Import the recipe module; verify SOURCES, EXPECTED_SCHEMA, and a callable transform() exist
2	Resolve	Find each file under --data-dir; skip optional sources gracefully; fail fast if required files are missing
3	Transform	Call transform(sources), verify it returns a non-empty pl.DataFrame
4	Schema	Assert every column in EXPECTED_SCHEMA is present with the correct dtype; validate OPTIONAL_SCHEMA columns if present

If any checkpoint fails, execution stops with a clear error message pointing to the exact problem.

---

CLI Commands

depictio recipe list

List all bundled recipes.

depictio recipe list

Output:

Available recipes (6):
  nf-core/ampliseq/alpha_diversity.py
  nf-core/ampliseq/alpha_rarefaction.py
  nf-core/ampliseq/ancombc.py
  nf-core/ampliseq/taxonomy_composition.py
  nf-core/ampliseq/taxonomy_heatmap.py
  nf-core/ampliseq/taxonomy_rel_abundance.py

---

depictio recipe info <name>

Show recipe details: docstring, sources, and expected output schema. Pass --version to inspect a version-specific override.

depictio recipe info nf-core/ampliseq/alpha_diversity.py

Output:

Recipe: nf-core/ampliseq/alpha_diversity.py
Description: Transform QIIME2 alpha diversity vector to per-sample Faith PD table.

Sources (1):
  faith_pd: qiime2/diversity/alpha_diversity/faith_pd_vector/metadata.tsv (TSV)

Expected output schema (2 columns):
  sample: Utf8
  faith_pd: Float64

Optional schema: {} (metadata columns passed through dynamically)

---

depictio recipe run <name>

Execute a recipe against local data with all 4 validation checkpoints.

depictio recipe run nf-core/ampliseq/alpha_diversity.py \
  --data-dir /data/ampliseq_results

Options:

Flag	Short	Default	Description
--data-dir	-d	required	Root directory with workflow output files
--version	-v	null	Pipeline version for version-specific recipe (e.g. 2.14.0)
--output	-o	null	Save result to .parquet or .csv file
--head	-n	20	Number of rows to display

dc_ref sources

Recipes that reference another data collection via dc_ref (e.g. taxonomy_rel_abundance.py) cannot be fully executed standalone. The CLI will report which sources are skipped and exit with code 0. These sources are resolved automatically during depictio run when all data collections are available.

---

Recipe Anatomy: Ampliseq Examples

The six bundled ampliseq recipes cover the full spectrum of transformation patterns. Study them as templates for writing your own recipes.

Example 1 — Simple file transformation (alpha_diversity.py)

Pattern: Filter comment rows, rename columns, cast types. Metadata columns embedded by the pipeline are passed through dynamically.

"""Transform QIIME2 alpha diversity vector to per-sample Faith PD table."""

import polars as pl
from depictio.models.models.transforms import RecipeSource

SOURCES: list[RecipeSource] = [
    RecipeSource(
        ref="faith_pd",
        path="qiime2/diversity/alpha_diversity/faith_pd_vector/metadata.tsv",
        format="TSV",
    ),
]

EXPECTED_SCHEMA: dict[str, type[pl.DataType]] = {
    "sample": pl.Utf8,
    "faith_pd": pl.Float64,
}
# Any metadata columns embedded by QIIME2 (e.g. habitat) are passed through.
OPTIONAL_SCHEMA: dict[str, type[pl.DataType]] = {}


def transform(sources: dict[str, pl.DataFrame]) -> pl.DataFrame:
    df = sources["faith_pd"]
    df = df.filter(~pl.col("id").str.starts_with("#"))
    df = df.rename({"id": "sample"})
    df = df.with_columns(pl.col("faith_pd").cast(pl.Float64))
    return df  # all columns preserved, including any embedded metadata

---

Example 2 — Wide-to-long reshape (alpha_rarefaction.py)

Pattern: Unpivot wide columns into long format with regex extraction.

Input: Wide CSV where columns are depth-500_iter-3, depth-1000_iter-1, etc. Output: Long-format (sample, depth, iter, faith_pd) — ready for line charts.

"""Transform QIIME2 alpha rarefaction wide CSV to long-format rarefaction curves."""

import polars as pl
from depictio.models.models.transforms import RecipeSource

SOURCES: list[RecipeSource] = [
    RecipeSource(
        ref="faith_pd_csv",
        path="qiime2/alpha-rarefaction/faith_pd.csv",
        format="CSV",
    ),
]

EXPECTED_SCHEMA = {
    "sample": pl.Utf8,
    "depth": pl.Int64,
    "iter": pl.Int64,
    "faith_pd": pl.Float64,
}


def transform(sources: dict[str, pl.DataFrame]) -> pl.DataFrame:
    df = sources["faith_pd_csv"]
    value_cols = [c for c in df.columns if c.startswith("depth-")]
    df = df.unpivot(
        on=value_cols, index="sample-id", variable_name="depth_iter", value_name="faith_pd"
    )
    df = df.rename({"sample-id": "sample"})
    df = df.with_columns(
        pl.col("depth_iter").str.extract(r"depth-(\d+)", 1).cast(pl.Int64).alias("depth"),
        pl.col("depth_iter").str.extract(r"iter-(\d+)", 1).cast(pl.Int64).alias("iter"),
        pl.col("faith_pd").cast(pl.Float64),
    )
    return df.drop_nulls(subset=["faith_pd"]).select("sample", "depth", "iter", "faith_pd")

---

Example 3 — Cross-DC join with optional metadata (taxonomy_rel_abundance.py)

Pattern: Reference another data collection via dc_ref, join generically on a shared key. The metadata source is optional — when absent, the recipe produces core columns only.

"""Transform QIIME2 relative abundance table to long-format per-sample taxonomy table."""

import polars as pl
from depictio.models.models.transforms import RecipeSource

SOURCES: list[RecipeSource] = [
    RecipeSource(
        ref="rel_table",
        path="qiime2/rel_abundance_tables/rel-table-2.tsv",
        format="TSV",
        read_kwargs={"skip_rows": 1},
    ),
    RecipeSource(
        ref="metadata",
        dc_ref="metadata",    # references another DC by tag
        optional=True,         # absent when no metadata provided
    ),
]

EXPECTED_SCHEMA = {
    "sample": pl.Utf8,
    "taxonomy": pl.Utf8,
    "rel_abundance": pl.Float64,
    "Kingdom": pl.Utf8,
    "Phylum": pl.Utf8,
}
# Metadata columns are user-defined; validated dynamically
OPTIONAL_SCHEMA: dict[str, type[pl.DataType]] = {}


def transform(sources: dict[str, pl.DataFrame]) -> pl.DataFrame:
    df = sources["rel_table"]
    df = df.rename({"#OTU ID": "taxonomy"})
    sample_cols = [c for c in df.columns if c != "taxonomy"]
    df = df.with_columns(pl.col(sample_cols).cast(pl.Float64))
    df = df.unpivot(
        on=sample_cols, index="taxonomy", variable_name="sample", value_name="rel_abundance"
    )
    df = df.filter(pl.col("rel_abundance").is_not_null() & (pl.col("rel_abundance") > 0))
    df = df.with_columns(
        pl.col("taxonomy").str.split(";").list.get(0).alias("Kingdom"),
        pl.col("taxonomy").str.split(";").list.get(1).fill_null("Unclassified").alias("Phylum"),
    )

    # Join ALL metadata columns generically when metadata is available
    metadata = sources.get("metadata")
    if metadata is not None:
        metadata = metadata.rename({"ID": "sample"})
        df = df.join(metadata, on="sample", how="left")

    core = ["sample", "taxonomy", "rel_abundance", "Kingdom", "Phylum"]
    extra = [c for c in df.columns if c not in core]
    return df.select(core + extra)

---

Example 4 — Multi-file merge with source overrides (ancombc.py)

Pattern: Merge multiple slices of the same analysis into one long-format table. The recipe declares default source paths, but the template overrides them via source_overrides to parameterize the directory name with {GROUP_COL}.

"""Merge ANCOM-BC differential abundance results (5 files) into one long-format table."""

import polars as pl
from depictio.models.models.transforms import RecipeSource

# Default paths — overridden by template.yaml source_overrides with {GROUP_COL}
SOURCES = [
    RecipeSource(ref="lfc", path="qiime2/ancombc/differentials/Category-habitat-level-2/lfc_slice.csv", format="CSV"),
    RecipeSource(ref="p_val", path="qiime2/ancombc/differentials/Category-habitat-level-2/p_val_slice.csv", format="CSV"),
    RecipeSource(ref="q_val", path="qiime2/ancombc/differentials/Category-habitat-level-2/q_val_slice.csv", format="CSV"),
    RecipeSource(ref="w", path="qiime2/ancombc/differentials/Category-habitat-level-2/w_slice.csv", format="CSV"),
    RecipeSource(ref="se", path="qiime2/ancombc/differentials/Category-habitat-level-2/se_slice.csv", format="CSV"),
]

EXPECTED_SCHEMA = {
    "id": pl.Utf8, "contrast": pl.Utf8,
    "lfc": pl.Float64, "p_val": pl.Float64, "q_val": pl.Float64,
    "w": pl.Float64, "se": pl.Float64,
    "Kingdom": pl.Utf8, "Phylum": pl.Utf8,
    "neg_log10_qval": pl.Float64, "significant": pl.Boolean,
}


def transform(sources: dict[str, pl.DataFrame]) -> pl.DataFrame:
    contrast_cols = [c for c in sources["lfc"].columns if c not in ("id", "(Intercept)")]
    melted = {
        name: sources[name].select("id", *contrast_cols)
            .unpivot(on=contrast_cols, index="id", variable_name="contrast", value_name=name)
        for name in ["lfc", "p_val", "q_val", "w", "se"]
    }
    result = melted["lfc"]
    for name in ["p_val", "q_val", "w", "se"]:
        result = result.join(melted[name], on=["id", "contrast"], how="left")

    return result.with_columns(
        pl.col("id").str.split(";").list.get(0).alias("Kingdom"),
        pl.col("id").str.split(";").list.get(1).fill_null("Unclassified").alias("Phylum"),
        (-pl.col("q_val").log(base=10)).alias("neg_log10_qval"),
        (pl.col("q_val") < 0.05).alias("significant"),
    ).select("id", "contrast", "lfc", "p_val", "q_val", "w", "se",
             "Kingdom", "Phylum", "neg_log10_qval", "significant")

Source overrides

The Category-habitat-level-2 directory name in the default SOURCES paths is a fallback. In the ampliseq template, these paths are overridden to Category-{GROUP_COL}-level-2/ so they resolve dynamically based on the user's metadata grouping column.

---

RecipeSource Reference

RecipeSource is the Pydantic model that describes one input to a recipe.

Field	Type	Required	Description
ref	str	yes	Key in the sources dict passed to transform()
path	str	if no dc_ref	File path relative to --data-dir
dc_ref	str	if no path	Tag of another data collection to inject (resolved by the API)
format	str	yes if path set	CSV, TSV, or Parquet (case-insensitive)
read_kwargs	dict	no	Extra kwargs forwarded to the Polars reader (e.g. {"skip_rows": 1})
optional	bool	no	If true, source is skipped when unavailable instead of failing
glob_pattern	str	no	Glob pattern for matching multiple files (concatenated)

Exactly one of path, dc_ref, or glob_pattern must be set per source.

glob_pattern (per-sample inputs)

Use glob_pattern instead of path to fan multiple per-sample files into one DataFrame. The glob is expanded by the recipe runner relative to the project's data_dir (typically --data-root):

SOURCES: list[RecipeSource] = [
    RecipeSource(
        ref="pangolin_raw",
        glob_pattern="variants/ivar/consensus/bcftools/pangolin/*.pangolin.csv",
        format="CSV",
    ),
]

Matched files are read individually and concatenated with pl.concat([...], how="diagonal_relaxed"). glob_pattern is mutually exclusive with path and dc_ref.

---

Declaring a Recipe in project.yaml

To use a recipe in a project, set source: "transformed" on the data collection and specify the recipe name under transform.recipe:

data_collections:
  - data_collection_tag: "alpha_diversity"
    description: "Per-sample alpha diversity"
    config:
      type: "Table"
      source: "transformed"
      transform:
        recipe: "nf-core/ampliseq/alpha_diversity.py"
      dc_specific_properties:
        format: "TSV"
        columns_description:
          "sample": "Sample identifier"
          "faith_pd": "Faith's Phylogenetic Diversity"

Use source_overrides to parameterize recipe source paths via template variables:

  - data_collection_tag: "ancombc_results"
    config:
      type: "Table"
      source: "transformed"
      transform:
        recipe: "nf-core/ampliseq/ancombc.py"
        source_overrides:
          lfc:
            path: "qiime2/ancombc/differentials/Category-{GROUP_COL}-level-2/lfc_slice.csv"
          # ... one override per source ref

The recipe is executed during depictio data process (Step 5 of depictio run). All 4 checkpoints run automatically. If the recipe fails, the data collection is skipped and an error is logged.

Using templates

For nf-core/ampliseq, all six recipes are pre-configured in the bundled template. Use depictio run --template nf-core/ampliseq/2.16.0 --data-root /your/data --var SAMPLESHEET_FILE=samplesheet.csv to set up the complete project without writing any YAML. See Templates.

---

Recipe File Locations

Recipes live inside the depictio/projects/ directory, co-located with the templates that use them:

depictio/projects/
└── nf-core/
    └── ampliseq/
        ├── recipes/                          ← shared recipes (all pipeline versions)
        │   ├── alpha_diversity.py
        │   ├── alpha_rarefaction.py
        │   ├── ancombc.py
        │   ├── taxonomy_composition.py
        │   ├── taxonomy_heatmap.py
        │   └── taxonomy_rel_abundance.py
        ├── 2.14.0/
        │   ├── template.yaml
        │   └── recipes/                      ← version-specific overrides
        │       └── taxonomy_rel_abundance.py
        └── 2.16.0/
            ├── template.yaml                 ← no overrides, inherits shared
            └── dashboards/
                ├── base.yaml                 ← minimal (no metadata)
                └── full_analysis.yaml        ← metadata-aware with {GROUP_COL}

To add a recipe for a new pipeline, create depictio/projects/{org}/{pipeline}/recipes/{name}.py following the contract: define SOURCES, EXPECTED_SCHEMA, and transform().

---

Version-Specific Recipes

When a pipeline output format changes between versions (column renames, file moves, schema changes), you can add a version-specific override without touching the shared recipe.

Resolution order when running pipeline version 2.14.0:

1. projects/{pipeline}/2.14.0/recipes/{name}.py — checked first (override)
2. projects/{pipeline}/recipes/{name}.py — used if no override exists (shared)

Most recipes are shared across all versions. Only the ones that actually differ need an override.

To test a version-specific recipe standalone:

# Uses shared recipe
depictio recipe run nf-core/ampliseq/taxonomy_rel_abundance.py --data-dir /data/run

# Uses the v2.14.0 override if it exists, falls back to shared otherwise
depictio recipe run nf-core/ampliseq/taxonomy_rel_abundance.py \
  --data-dir /data/run \
  --version 2.14.0

---

Additional Resources

• Templates — pre-packaged project configs that use recipes automatically
• YAML Examples — recipe data collection patterns
• CLI Usage — full CLI command reference
