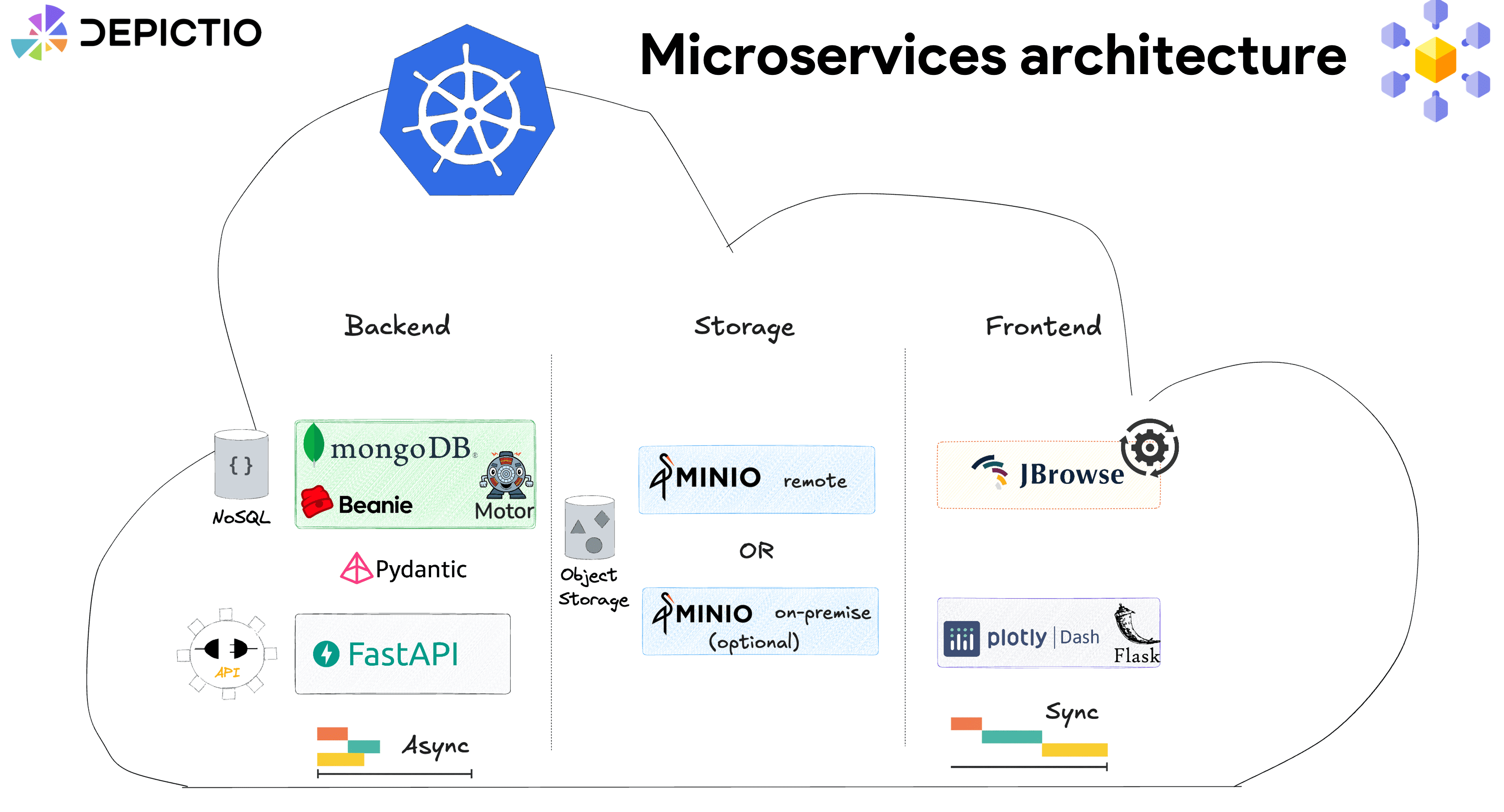

Depictio is built on a modern microservices architecture that provides flexibility, scalability, and maintainability.

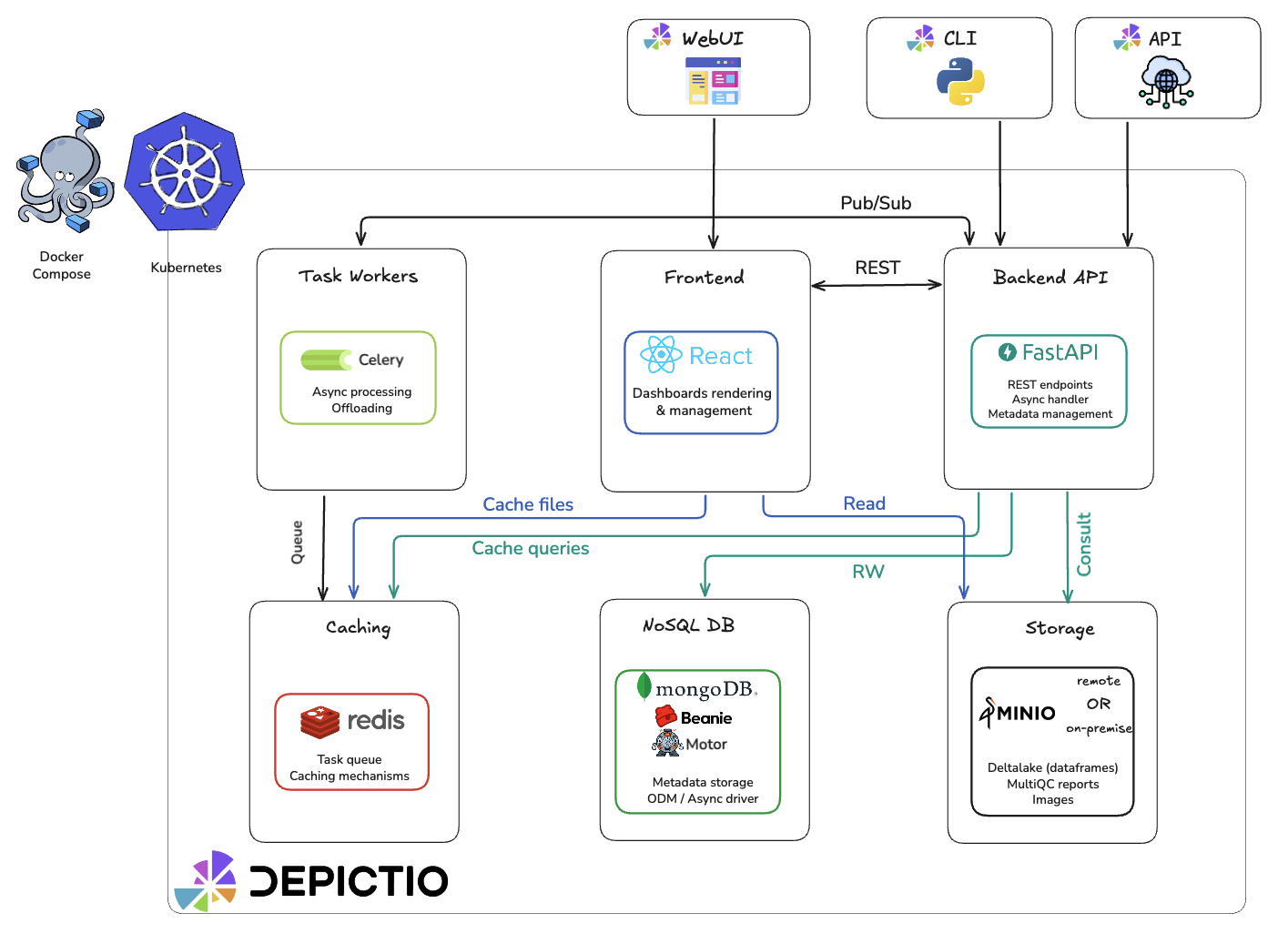

Depictio architecture

Microservices Overview

Depictio's architecture consists of six main components organized by category:

Core Services

Component Technology Purpose
Backend FastAPI RESTful API, authentication, business logic
Frontend Plotly Dash Interactive dashboards

Data Layer

Component Technology Purpose
Database MongoDB Metadata, users, configurations
Storage MinIO/S3 Data files, Delta Lake tables

Infrastructure

Component Technology Purpose
Cache/Broker Redis Caching, session storage, Celery task broker
Worker Celery (Optional) Background task processing

FastAPI Backend

The backend service is built with FastAPI, a modern, high-performance web framework:

  • RESTful API endpoints for all platform functionality
  • JWT-based authentication and authorization
  • Asynchronous request handling for improved performance
  • Pydantic models for data validation and serialization
  • Beanie ODM for MongoDB integration

MongoDB Database

MongoDB serves as the primary database, storing:

  • User accounts and authentication information
  • Project metadata and configurations
  • :material-workflow: Workflow definitions and run information
  • Dashboard layouts, structure, and content
  • Data collection metadata

MinIO S3 Storage (Optional)

MinIO provides S3-compatible object storage for:

  • Processed data ready for visualization (Delta Lake format)
  • Genome-browser compatible data
  • Large file assets

Redis Cache/Broker

Redis serves dual purposes in Depictio:

  • Caching: DataFrame caching and session storage for improved performance
  • Task Broker: Message broker and result backend for Celery background tasks

Plotly Dash Frontend

The frontend is built with Plotly Dash (React), providing:

  • Interactive data visualization components
  • Real-time data updates
  • Draggable and customizable dashboard layouts
  • Integration with the backend API

Multi-App Architecture (v0.6.0+)

Starting with version 0.6.0, Depictio uses a multi-app architecture that separates the frontend into three independent Dash applications:

┌─────────────────────────────────────────────────────────────────┐
│                     Flask Dispatcher                             │
│                   (flask_dispatcher.py)                          │
└───────────────┬───────────────┬───────────────┬─────────────────┘
                │               │               │
    ┌───────────▼───────┐ ┌─────▼─────┐ ┌───────▼───────────┐
    │   Management App  │ │ Viewer App│ │    Editor App     │
    │        /          │ │ /dashboard│ │  /dashboard-edit  │
    │                   │ │           │ │                   │
    │ • Authentication  │ │ • Read-   │ │ • Dashboard       │
    │ • Dashboard list  │ │   only    │ │   editing         │
    │ • Projects page   │ │   viewing │ │ • Component       │
    │ • Admin panel     │ │ • Data    │ │   creation        │
    │                   │ │   updates │ │ • Design mode     │
    └───────────────────┘ └───────────┘ └───────────────────┘

App Responsibilities

App URL Pattern Purpose
Management /, /auth, /dashboards, /projects, /admin Authentication, listing, project management
Viewer /dashboard/{id} Read-only dashboard viewing
Editor /dashboard-edit/{id} Dashboard editing and component creation

Benefits

  1. Callback Isolation: Each app has its own callback registry, preventing conflicts
  2. Performance: Reduced callback overhead per app
  3. Security: Editor functionality isolated from viewer mode
  4. Scalability: Apps can be optimized independently

Background Processing (v0.6.0+)

Depictio supports background task processing using Celery and Redis for computations that would otherwise block the UI.

┌─────────────┐     ┌─────────────────┐     ┌─────────────┐
│  Dash App   │────▶│  Celery Worker  │────▶│    Redis    │
│  (Editor)   │     │                 │     │  (Broker)   │
└─────────────┘     └─────────────────┘     └─────────────┘

The Dash application submits tasks to Celery workers, which use Redis as both a message broker (for task queuing) and result backend (for storing task results).

When Background Processing is Used

Context Background Processing
Editor (design mode) Always required
Viewer app Optional (DEPICTIO_CELERY_ENABLED)
Management app Never (no heavy computations)

Configuration

To enable background processing:

  1. Set the environment variable in your .env file or Docker Compose configuration:
DEPICTIO_CELERY_ENABLED=true
  1. Restart the full Docker Compose stack to apply the change:
docker compose down && docker compose up -d

Full Restart Required

After changing DEPICTIO_CELERY_ENABLED, you must restart the entire Docker Compose stack for the change to take effect across all services.

Environment Variables

Variable Default Description
DEPICTIO_CELERY_ENABLED false Enable background callbacks
DEPICTIO_CELERY_BROKER_HOST redis Redis broker hostname
DEPICTIO_CELERY_BROKER_PORT 6379 Redis broker port
DEPICTIO_CELERY_BROKER_DB 1 Redis database for Celery broker
DEPICTIO_CELERY_RESULT_BACKEND_DB 2 Redis database for Celery results

Data Flow

┌─────────┐     ┌─────────────┐     ┌─────────────┐     ┌─────────┐
│  CLI    │────▶│  FastAPI    │────▶│  MongoDB    │◀────│  Dash   │
│         │     │  Backend    │     │             │     │  UI     │
└─────────┘     └──────┬──────┘     └─────────────┘     └────┬────┘
                       │                                      │
                       ▼                                      │
                ┌─────────────┐                               │
                │   MinIO     │◀──────────────────────────────┘
                │  (Delta)    │
                └─────────────┘
  1. CLI ingests data, validates, stores in Delta format, registers in MongoDB
  2. API serves metadata and data access endpoints
  3. Dash UI renders interactive visualizations, calls API for data
  • Dashboards - Dashboard modes, tabs, and layouts
  • Components - Available component types
  • Data Model - Domain objects and relationship model
  • Security - Security features and code restrictions
