Cross-DC Filtering¶

Filter data in one collection and automatically update related visualizations—no pre-computed joins needed.

Overview¶

Links connect Data Collections for interactive filtering at runtime. When you filter a metadata table, linked MultiQC plots and other visualizations update automatically.

┌─────────────────┐         ┌─────────────────┐
│  Metadata Table │  link   │  MultiQC Plots  │
│                 │────────▶│                 │
│  [filter here]  │         │  [auto-updates] │
└─────────────────┘         └─────────────────┘

How It Works¶

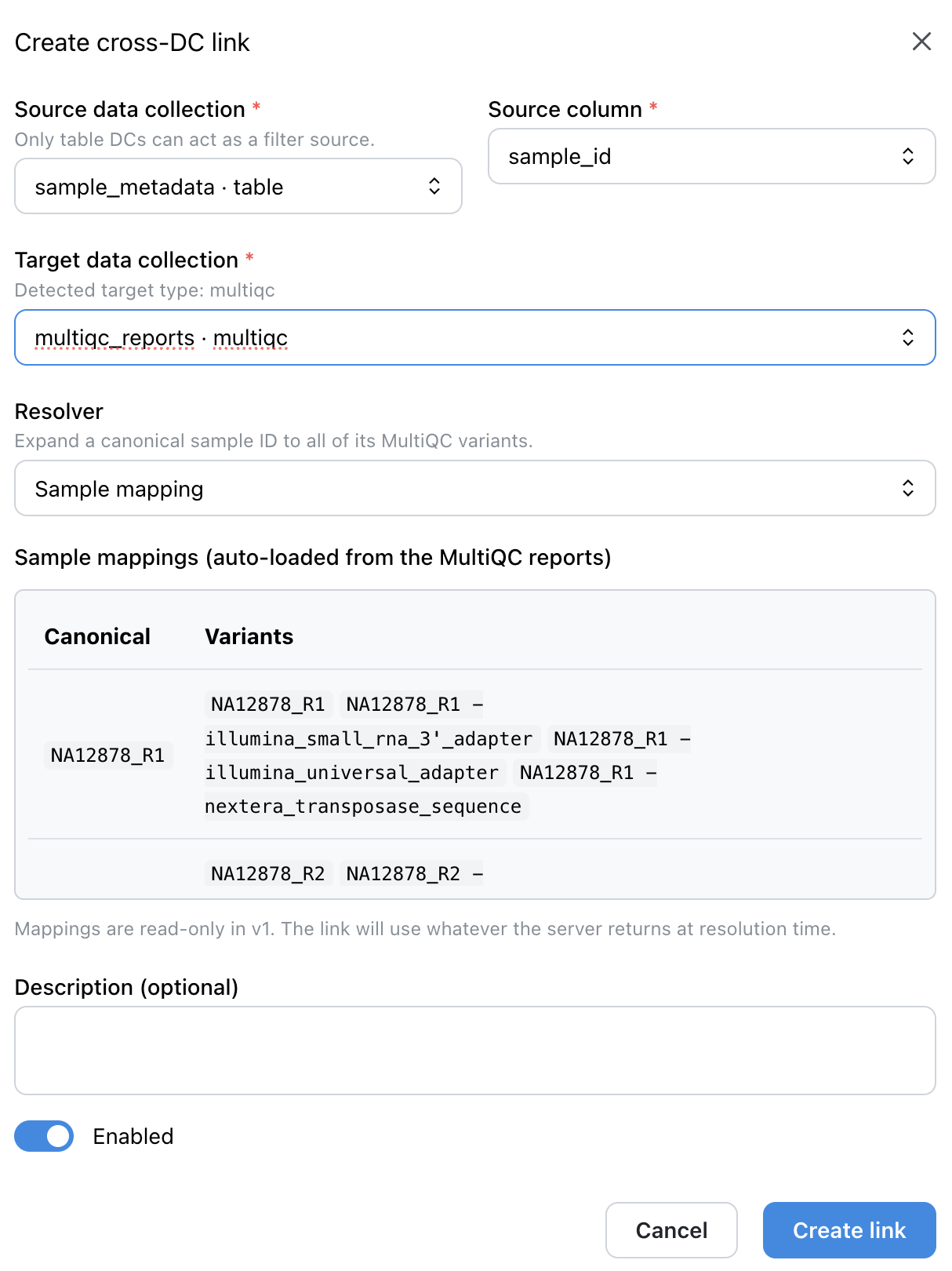

Define a link between source DC (e.g., metadata table) and target DC (e.g., MultiQC)
Add a filter component to your dashboard
When users filter the source DC, linked targets automatically show only matching data

Configuration¶

Add links to your project YAML:

links:
  - source_dc_id: sample_metadata
    source_column: sample_id
    target_dc_id: multiqc_fastqc
    target_type: multiqc
    link_config:
      resolver: sample_mapping

Link Fields¶

Field	Required	Description
`source_dc_id`	Yes	Data collection containing the filter
`source_column`	Yes	Column to filter on
`target_dc_id`	Yes	Data collection to receive filtered values
`target_type`	Yes	Type of target: `table` or `multiqc`
`link_config`	Yes	Resolution configuration (see below)

Link Config Options¶

link_config:
  resolver: sample_mapping    # Resolution strategy
  target_field: sample_name   # Field to match in target (optional)

Resolvers¶

Resolvers map source values to target identifiers:

Resolver	Use Case	Example
`direct`	Same value in both DCs	`sample_id` → `sample_id`
`sample_mapping`	Canonical ID → MultiQC variants	`S1` → `[S1_R1, S1_R2]`
`pattern`	Template substitution	`{sample}.bam`

When to Use Each Resolver¶

direct: Source and target use identical identifiers
sample_mapping: MultiQC sample names differ from your canonical IDs (most common for MultiQC)
pattern: Target uses predictable naming convention

Supported Target Types¶

Type	Filter Action	Status
`table`	Filters rows with `WHERE IN`	Available
`multiqc`	Filters plot samples	Available
`map`	Filters map markers	Available
`jbrowse2`	Shows/hides tracks	Planned
`images`	Filters image gallery	Planned

Complete Example¶

name: "RNA-seq QC Analysis"
project_type: "advanced"

# Define links for cross-DC filtering
links:
  # Link metadata to MultiQC plots
  - source_dc_id: sample_metadata
    source_column: sample_id
    target_dc_id: multiqc_general_stats
    target_type: multiqc
    link_config:
      resolver: sample_mapping

  # Link metadata to expression table
  - source_dc_id: sample_metadata
    source_column: sample_id
    target_dc_id: gene_expression
    target_type: table
    link_config:
      resolver: direct
      target_field: sample_id

workflows:
  - name: "rnaseq_pipeline"
    # ... workflow config ...

    data_collections:
      - data_collection_tag: "sample_metadata"
        config:
          type: "table"
          metatype: "metadata"
          # ... scan config ...

      - data_collection_tag: "multiqc_general_stats"
        config:
          type: "MultiQC"

      - data_collection_tag: "gene_expression"
        config:
          type: "table"
          metatype: "aggregate"
          # ... scan config ...

Dashboard Usage¶

Create a dashboard with your linked data collections
Add a filter component (dropdown, multi-select) on the source DC
Add visualizations for the target DCs
Filter the source → targets update automatically

Links vs Joins¶

Feature	Links	Joins
Execution	Runtime (on filter)	Pre-computed (CLI batch)
Storage	None	Delta table in S3
Target types	Any (table, MultiQC, ...)	Tables only
Use case	Interactive filtering	Combined datasets

Use links for interactive cross-DC filtering. Use joins when you need a permanently combined dataset.
